TTR filter box 610

For HEPA filtration of process air using TTR industrial desiccant dehumidifiers

TTR filterbox 610

The TTR filter box 610 is an ideal solution for all applications involving the emission of process air into environments with special air purity requirements.

The filter box with its hygiene-friendly stainless steel design accommodates two filter compartments: an H13 HEPA filter and a pre-filter. Additionally, it is equipped with a HEPA filter level indication for external voltage supply.

The filter box was specially developed for use with industrial desiccant dehumidifiers of the TTR series. However, it can also be combined with other dry air generators as well as with all air treatment units the air of which is released into rooms with specific purity requirements.

Each TTR filter box is designed for a maximum air flow rate of 4,000 m³/h and can easily be complemented with additional TTR filter boxes installed in parallel to allow for operation with more powerful air treatment units.

Can be variably combined
The TTR filter box 610 can be variably combined with virtually any air treatment unit.
HEPA pre-filter of the TTR filter box
G4 Z-line filter or F7 pleated filter cartridges may be installed in the pre-filter compartment.
HEPA filter level indication
Each TTR filter box is equipped with a HEPA filter level indication for external voltage supply.

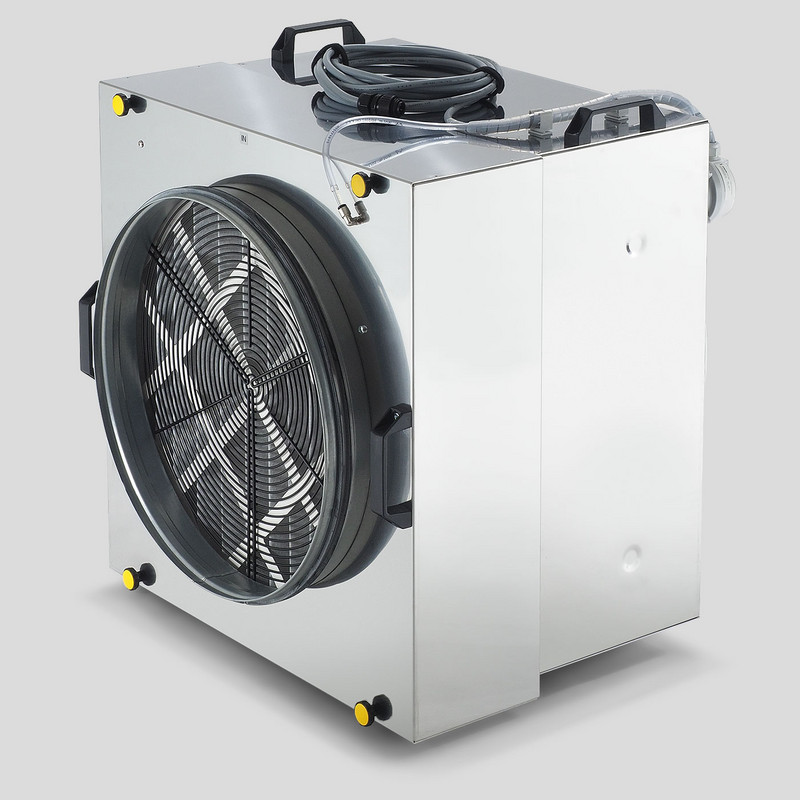

HEPA filter of the TTR filter box
The second filter compartment of the TTR filter box accommodates an H13 high-efficiency particulate air filter.

A few practical benefits:

  • Professional quality “Made in Germany” – originally produced by Trotec
  • Flexible and relocatable solution for HEPAfiltration of process air
  • Trouble-free parallel operation of several filter boxes connected to one industrial desiccant dehumidifier with a higher air flow rate
  • HEPA filter level indication for external voltage supply
  • Can be variably combined with Trotec’s industrial desiccant dehumidifiers of the TTRseries as well as other air treatment units

Trotec: Innovation made in Germany

Take a look behind the scenes: As one of the internationally leading manufacturers of air treatment solutions, Trotec offers industrial and commercial customers innovative products for air purification, dehumidification, heating, air conditioning and ventilation. We rely 100 % on research, development, design and production in Germany for our high-performance devices. For the highest quality requirements, sophisticated system solutions and fresh ideas.

Watch the video to see for yourself!

Buy

Technical data

Technical data
General information
  Article number 7.240.000.015
Dimensions
  Length (packaging excluded) [mm] 605
  Width (packaging excluded) [mm] 655
  Height (packaging excluded) [mm] 730
Weight
  (packaging excluded) [kg] 33

 standard equipment

 optionally available

 not available
