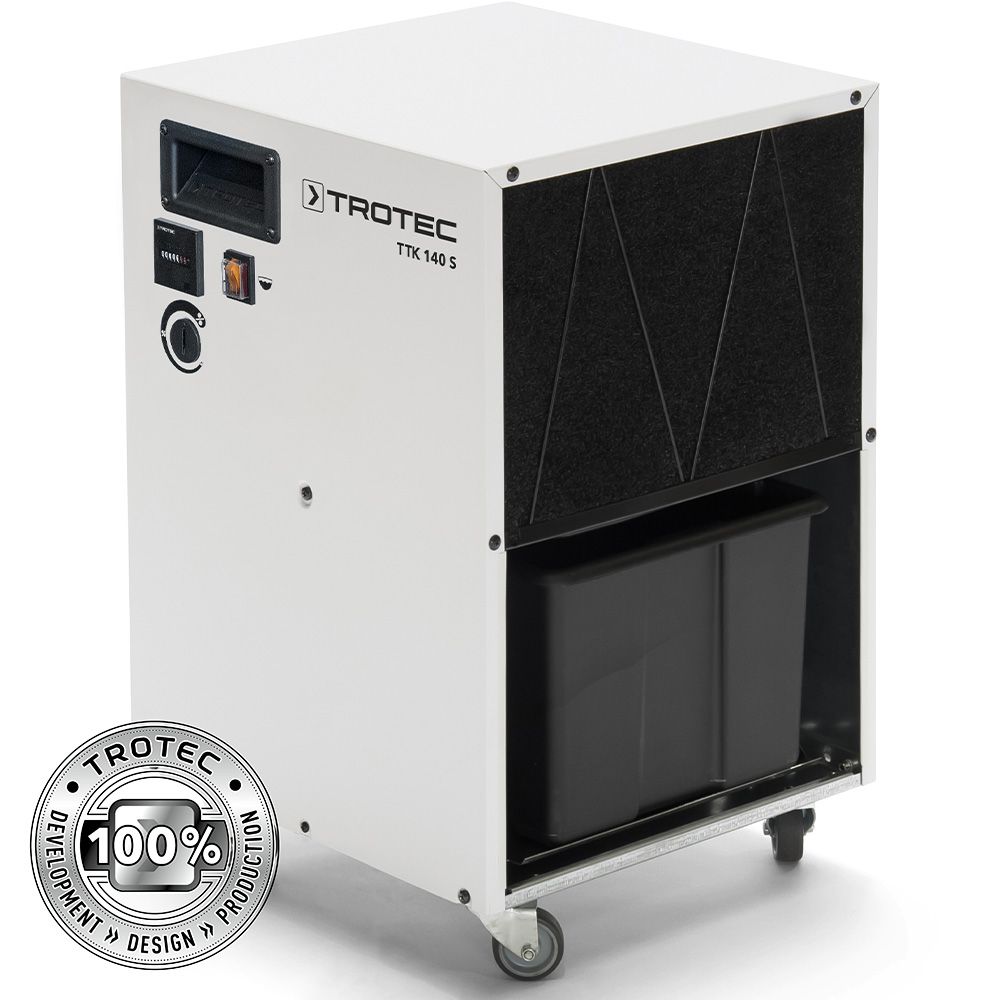

COMMERCIAL AIR HUMIDIFIER TTK 140 S

Name: Luftentfeuchter TTK 140 S
Brand: Trotec
SKU: 1120000141
Price: 829 EUR
Availability: InStock

Powerful technology for workshops, storage spaces and construction sites

High dehumidification performance even at low temperatures

With this compact industrial dehumidifier you can benefit from a budget-friendly dehumidification solution without compromising in terms of workmanship and reliability. The TTK 140 S available exclusively at Trotec is of traditional EU manufacturing and demonstrates in a respectable way that a price level of the Far East is indeed compatible with robust brand quality.

Four swivel castors with RollStop catch and two integrated recessed handles simplify the transport and positioning of the device. Thus you can apply the TTK 140 S flexibly for various drying operations, for example for dry keeping of heated and unheated living, sanitary, storage or basement rooms, garages and workshops.

Permanent mode for construction drying applications

The possibility of connecting an external condensate drain – if required with an optional condensate pump – also makes the TTK 140 S ideally suitable for longer unattended dry keeping tasks, e.g. for construction drying.

Investment protection for your drying devices

Particularly during construction drying operations in summer or when drying water damages, it is very likely that climate conditions arise which may significantly shorten the lifetime of condenser dryers – regardless of the make. We as manufacturer care about the fact that for process-related reasons your condenser dryers often have to be replaced much too soon, hence we have prepared a valuable practical recommendation relating to the investment protection of your drying devices. Click here to find out more ...

Under the heading of hot gas defrosting and construction drying

Did you know that every construction dryer is at the same time a commercial dehumidifier, but that not every commercial dehumidifier is automatically a real construction dryer? Here you can find out the reasons for this, and why hot gas defrosting makes the decisive difference ...

Propane (R290) as environmentally friendly refrigerant in dehumidifiers

Every year, several million tonnes of environmentally harmful CO₂emissions (greenhouse gases) are emitted into the air by synthetic refrigerants. For this reason, the utilization of alternative refrigerants has become one of our key objectives. By using propane (R290) as refrigerant, this dehumidifier makes a valuable contribution to protecting our climate.

The natural refrigerant propane (R290) is an organic compound belonging to the group of hydrocarbons. Unlike synthetic refrigerants the environmentally friendly propane (R290) comes with neither ozone depletion potential (ODP = 0) nor a noteworthy greenhouse effect (GWP = 3).

Additional bonus for the environment: Owing to its excellent thermodynamic properties, propane (R290) is a particularly energy-efficient refrigerant thereby additionally reducing your energy costs.

TTK 170 S – operating switch and filling level warning light protected from dust and spray water

TTK 170 S – optional operating hours counter

TTK 170 S – optional MID-compliant dual counter for operating and kilowatt hours

Performance and safety are the top priorities here!

The operating switch of the TTK 140 S is protected from dust and spray water by a protective cap, and a slotted hygrostat rotary switch protects against inadvertent misadjustment of the switch position.

The professional hot gas automatic defrost system of the TTK 140 S guarantees effective dehumidification results even at low temperatures, and thanks to the standard external condensate drain this dehumidifier is also suited for longer unattended continuous drying applications, for instance in holiday homes.

The TTK 140 S is optionally also available with an integrated operating hours counter or a MID-compliant dual counter for operating and kilowatt hours.

What does MID compliant mean?

The European Measuring Instruments Directive (MID) has replaced the existing rules of national approval and subsequent calibration in some areas. As a result, all power meters, which are used for energy consumption billing, must be MID compliant in the future.

TTK 170 S – special equipment features

TTK 140 S – dimensions — In spite of its compact dimensions the TTK 140 S is outstanding with a dehumidification performance of 40 l/24h for rooms sized up to 140 m² or 350 m³. Owing to the rotary piston compressor, its carriage design of robust metal can be transported and stored in any position.

TTK 140 S – operating switch and filling level warning light — A protective cap protects the operating switch and the filling level warning light from dust and spray water. The slotted hygrostat rotary switch offers protection against unintended changes to the setting of the switch position.

TTK 140 S – recessed handles — The integrated recessed handles make the transport and positioning of the TTK 140 S to every desired location even easier.

TTK 140 S – external drain integrated as a standard — The external condensate drain that comes as a standard makes the TTK 140 S ideal for longer and unattended continuous drying applications.

TTK 140 S – automatic mode — The TTK 140 S ensures automatically that the target value entry is kept constant. When this value is exceeded, the device switches off automatically and also switches on again automatically when the value falls below the target entry. The target value preselection is between 32 % and 100 %, depending on the air humidity value in the room which is to be reached.

TTK 140 S – automatic defrosting — The TTK 140 S comes with function for automatic defrosting. When the room temperature is below 11 °C, the evaporator would freeze during dehumidification. This is why the TTK 140 S carries out fully automatic self-defrosting, if required.

TTK 140 S – memory function — The TTK 140 S is provided with a memory function. In the case of an unexpected switch-off due to a power interruption, this function makes the device restart with the previously selected setting as soon as the power supply has been restored.

TTK 140 S – permanent mode — In the permanent mode, the TTK 140 S dehumidifies the room air in continuous operation. Therefore it is ideally suited for longer unattended dry keeping tasks and professional construction drying applications. The condensate produced in the course of the dehumidification process should be discharged via the connectable drain hose, so that you do not have to keep emptying the water tank.

Application examples from practical experience:

TTK 140 S – storage hall — The commercial dehumidifier TTK 140 S, by its hygrostat-controlled automatic operation, provides for an optimum room climate, e.g. in storage halls. The target value can be adjusted via a rotary switch from a minimum value to the maximum value.

TTK 140 S – construction shell — Shells can be dried perfectly and easily in no time with the powerful and comfortable commercial dehumidifier TTK 140 S. This prevents major delays caused by necessary drying processes in the construction project, even at low temperatures.

TTK 140 S – water damage restoration — The TTK 140 S is also an excellent choice when it comes to its use for water damage restoration. The process of drying the spaces can be substantially accelerated in such cases of damage, as a consequence considerably reducing mould formation.

All commercial dehumidifiers of the TTK-S series by direct comparison:

To find the commercial dehumidifier which exactly meets your requirements, please consult the concise overview of commercial dehumidifiers of the TTK-S series from Trotec, which we're providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

Development, design, production: 100 % Trotec
High dehumidification performance even at low temperatures
Robust plastic-coated metal housing
Portable and easily stored anywhere thanks to its rotary compressor
Automatic hygrostat controlled dehumidification
High-quality hot gas automatic defrosting
MID-compliant dual counter for operating and kilowatt hours (optional)

Proper energy billing for existing equipment without meters?

You're using this or another electrical appliance without MID-compliant energy consumption meter of which you have to report the current consumption to insurance companies? Then the BX50 MID is the perfect solution. Just install it between the device and a fixed socket – done!

Fan assistance

Quicker construction drying by air circulation

The drying time can be reduced by half if construction dryers and fans are combined. In doing this, each dryer is supplemented with a fan, which significantly improves the drying performance and thus also the duration of the drying process.

The increased air circulation results in a quicker evaporation of the humidity, for the higher the flow rate at the material surface, the sooner will the drying process be completed.
The axialfans of the TTV series and TTV-S series are especially suitable to provide assistance with regard to the drying process.

Accessory tip:

External condensate pump for continuous operation

This optionally available condensate pump is compatible with all TTK-ECO models from Trotec and is ideally suited for longer, unattended dry keeping applications. With a pump height of up to 5 metres the condensate can be pumped from the collection container of the construction dryer into a larger container or outside. This makes it possible to let the construction dryer run in continuous operation without a full collection container interrupting the dehumidification process.

Further information can be found here.

standard equipment

optionally available

not available

Shop

Luftentfeuchter TTK 140 S

829.00 € incl. VAT Show net price (VAT not included)

buy

Technical data

Technical data Equipment, features and functions

Technical data
General information
	Article number	1.120.000.141
Dehumidification performance
	At 30 °C / 80 % RH [l/24h]	35
	Max. [l/24h]	40
Air flow rate
	Level Max. [m³/h]	580
Recommended room size dry keeping
	m³	350
	m²	140
Ambient conditions
	Min. temperature range [°C]	5
	Max. temperature range [°C]	32
	Min. humidity range [% RH]	50
	Max. humidity range [% RH]	90
Electrical values
	Mains connection	220 - 240 V, 50 Hz
	Nominal current consumption [A]	2.7
	Power input [kW]	0.6
	Recommended fusing [A]	10
Electric connection
	Connection plug	CEE 7/7
	Cable length [m]	1.6
Compressor
	Rotary piston compressor
	refrigerant	R290
	Amount of refrigerant [g]	150
	GWP factor	3
	CO₂ equivalent	0.00045 t
	Pressure suction side [MPa]	0.6
	Pressure outlet side [MPa]	1.9
	Max. permissible pressure [Mpa]	3
Water tank
	Contents in [Litres]	6
Sound values
	Distance 1 m [dB(A)]	52
Functions and features
	Operating control lamp
	Auto restart function
	Connection for external condensate drain
	Memory function
	Fan rundown function
Dimensions
	Length (packaging excluded) [mm]	400
	Width (packaging excluded) [mm]	400
	Height (packaging excluded) [mm]	605
Weight
	(packaging excluded) [kg]	27.5

Equipment, features and functions
Automatic defrost system
	Hot gas
Automatic dehumidification
	Non-stop dehumidification
	Hygrostat-controlled
	Analogue hygrostat
Fan
	axial
	stages	1
Condensate tank monitoring
	Container available
	Overflow protection with automatic switch-off
	Filling level warning light to indicate a full water tank
Room air filter
	Readily accessible
	Cleanable
Operating hours counter
	Operating hours counter
	Power meter
Mobility
	Carry/transport handle(s)
	Swivel casters with parking brakes
Condensate drain
	Hose connection possible
	Hose included in the scope of delivery
	Condensate pump
	Recommended hose size [mm]	19
Control panel
	On / off switch
Shelf life
	stackable
Housing design
	Steel coated
