Radial fan TFV 600 Ex

Versatile high-pressure fan for long air transport routes in ex-proof zones

The TFV 600 Ex is designed for a high conveying capacity in ex-proof zones with high counter-pressure even in case of long transport routes when using several interconnected air transport hoses. This makes the TFV 600 Ex the ideal conveying fan for ventilation in ex-proof zones of class 2, e.g. for tank cleaning, in docks, refineries, shafts or silos.

Even with long hose distances of 50 metres with multiple arcs this powerful radial fan ensures large air volume, for in contrast to axial fans the TFV 600 Ex conveys air vertically to the rotor axle according to the operating principle of a centrifuge, where air is pressed to the outside and condensed in a helical housing.

And because the radial fan (designed according to ATEX directive 2014/34/EU) of this premium device, completely manufactured in Germany, is incorporated in a robust, powder-coated steel housing with highly resistant two-component finish, it doesn’t mind being operated in aggressive surroundings. The housing is optionally also available in all desired steel grades.

In addition to the frameless standard version the TFV 600 Ex is optionally also available as depicted incl. additional frame made of galvanized steel and with robust wheels, forklift slots and crane lifting lugs. The transport frame offers not only maximum mobility for application at frequently changing locations, it can also be stacked in two tiers to save space during transport and storage.

Switches, cables and plugs of the TFV 600 Ex are approved for use in explosion hazard conditions. Appropriate connection plugs, approved for use in zones 1, 2, 21 and 22, are available for connection extensions. Further optionally available for the TFV 600 Ex is a star-delta contactor combination 18.5 kW for ex-proof zone 22, 400 V, AC3, IP 55.

Connection plugs for application in ex-protection zones

Special connection plugs are optionally available for connection extensions of the ex-proof TFV models in explosion protection zones.

The adapter couplings are licensed for use in zones 1 and 2 (gas explosion protection) as well as zones 21 and 22 (dust explosion protection).

Adapter coupling 63 A Ex
Adapter coupling 63 A Ex
Star-delta contactor combination

A few practical benefits:

  • Development, design, production: 100 % Trotec
  • Explosion group II, category 3G, temperature class 4
  • Robust high-quality unit “made in Germany” with a high conveying capacity
  • Splash-proof model (IP55)
  • Fan motor is situated outside of the main air current
  • Can be connected to both intake and exhaust ducts
  • Stable characteristics and constantly high pressure
  • Optionally also available for explosion group II, category 2G (zone 1), category 2D (zone 21) and category 3D (zone 2)

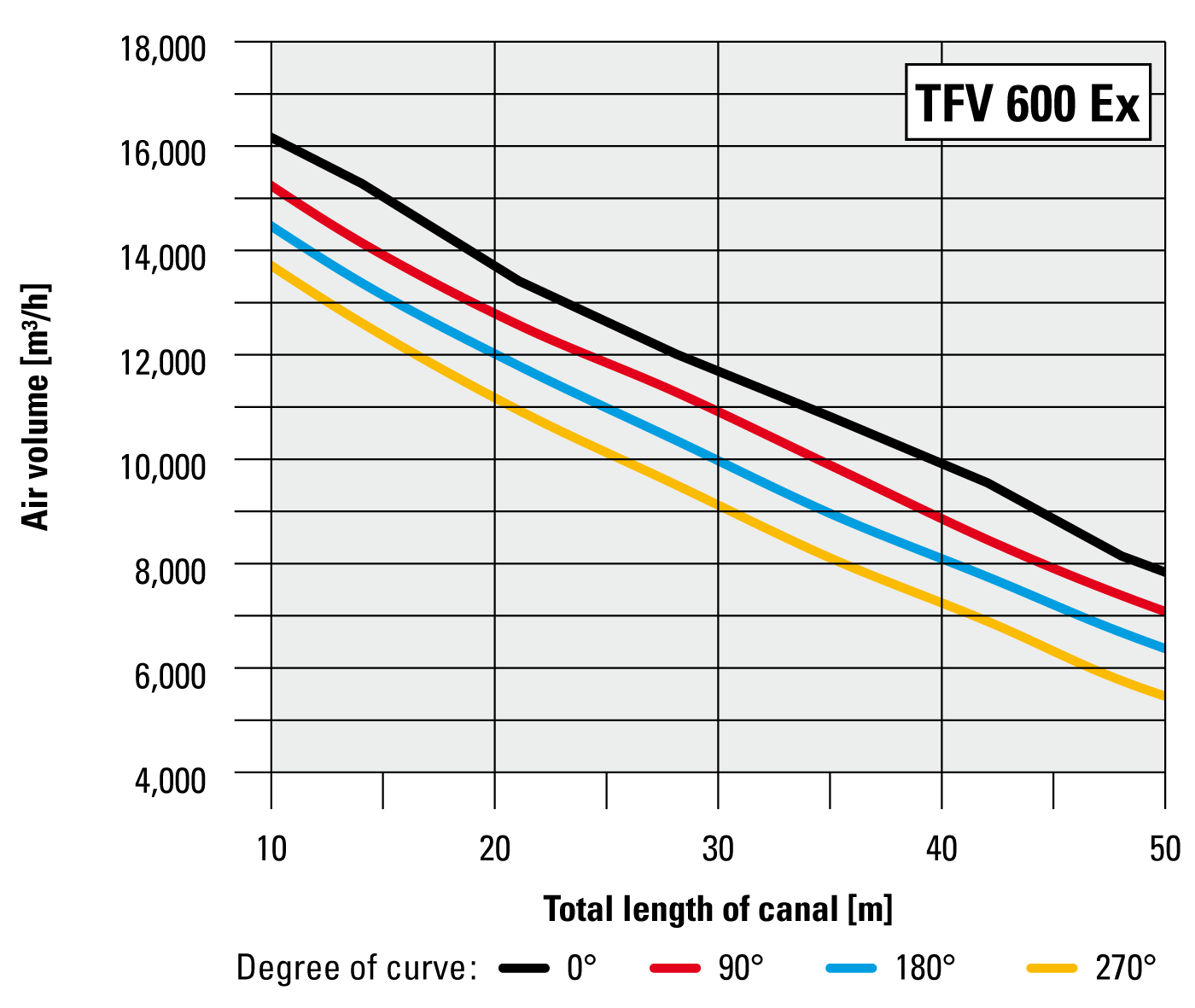

Air volume in proportion to channel length:

Air volume in proportion to channel length

Performance characteristics on the pressure side:

Performance characteristics on the pressure side

Technical data by comparison

All Ex-proof radial fans of the TFV series in direct comparison:

To find the Ex-proof radial fans of the TFV series which exactly meets your requirements, please consult the concise overview of all devices which we’re providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

Shop

Radialventilator TFV 600 Ex show in Trotec online shop

Technical data

Technical data
General information
  Article number 1.510.002.042
Air flow rate
  Air volume Level Max. - Freely blowing [m³/h] 16,000
Air volume at air pressure
  m³/h 10,000
  Pa 4,000
Air current
  Blowing out
  Sucking in
Air discharge velocity
  Air discharge speed [m/s] 21
  Air discharge speed [km/h] 75.6
Fan
  stages 1
Air pressure
  Level Max. [Pa] 4,900
Transport medium temperature
  max. [°C] 80
Ambient conditions
  Min. temperature range [°C] -20
  Max. temperature range [°C] 40
Safety feature
  IP type of protection 55
Electrical values
  Mains connection 400 V/50 Hz
  Power input [kW] 18.5
  Recommended fusing [A] 32
  Nominal current consumption [A] 32
Electric connection
  Connection plug CEE 63 A
  Provided by the customer
  Cable length [m]
Hose connection
  Suction nozzle [mm] 600
  Exhaust connection [mm] 450
Sound values
  Distance 1 m [dB(A)] 84
  Distance 3 m [dB(A)] 78
Explosion protection
  Zone 2
  Protection class II 3G, T4
Dimensions
  Length (packaging excluded) [mm] 1,305
  Width (packaging excluded) [mm] 1,250
  Height (packaging excluded) [mm] 1,170
Weight
  (packaging excluded) [kg] 233
Equipment, features and functions
Housing design
  Steel, powder-coated
  Plastics
  Metal
Mobility
  Crane
  Forklift
  Carry/transport handle(s)
  Plastic wheels
  Rubber-tyred metal wheels
  Non-marking full-rubber wheels

 standard equipment

 optionally available

 not available
