Electrodes for wood and building moisture measurement

Passive electrodes for the multifunction measuring meter T3000 for determining the material moisture

Different types of passive electrodes are used for determining material and wood moisture as well as the humidity of mineral or porous building materials such as plaster and screed material according to the resistance measuring method. When measuring with the T3000, in addition to real time values, minimum, maximum, average and “hold” values can be displayed using these electrodes.

TS 4/200 and TS 4/300 round electrodes, plug-in electrode tip pair

Very thin, stainless steel insertion electrodes/measurement electrodes (uninsulated, ø 2 mm) for resistance-based moisture measurement in screed, building and insulating materials through joints (expansion joints) or cross joints (intersecting tile joints).

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices such as the T3000 or T510 With a TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

TS 4/200 (length 200 mm), Article number: 3.510.226.110

TS 4/300 (length 300 mm), Article number: 3.510.226.115


TS 8/200 and TS 8/300 round electrodes, insertion electrode pin pair

Uninsulated, stainless steel insertion electrodes/measurement electrodes (ø 4 mm) for resistance-based moisture measurements on loose aggregate materials such as wood wool, sawdust, veneer stacks or bulk materials.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices such as the T3000 or T510 With a TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

TS 8/200 (length 200 mm), Article number: 3.510.226.120

TS 8/300 (length 300 mm), Article number: 3.510.226.125


TS 12/200 and TS 12/300 round electrodes, plug-in electrode tip pair

Insulated stainless steel electrodes (ø 4 mm) for targeted moisture measurement in concealed component layers where the electrode shaft needs to be insulated. An absence of insulation would falsify the measuring result. For the resistance-based depth measurement in old buildings, wooden beams (e.g. in roofs) and soft, set construction materials.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices such as the T3000 or T510 With a TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

The most frequent use is the determination of moisture distribution of multilayered wall or ceiling structures such as floating screeds, multilayered walls, wooden beam ceilings, warm roofs etc.

TS 12/200 (length 200 mm), Article number: 3.510.226.130

TS 12/300 (length 300 mm), Article number: 3.510.226.135


TS 12/600

TS 12/600 round electrodes, plug-in electrode tip pair

Insulated stainless steel electrodes with a length of 600 mm (ø 8 mm / ø 4 mm), ideally suited for use on flat roofs or for moisture measurements in very thick walls. For the resistance-based depth measurement in old buildings, wooden beams (e.g. in roofs) and soft, set construction materials.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices like the T3000 or T510 with TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

TS 12/600 (length 600 mm)






TS 16/200 and TS 16/300 flat electrodes

The area of application corresponds to the area of use of the insulated round electrodes TS 12/200 and TS 12/300. Flat electrode pair for the resistance-based moisture measurement in screed or insulating materials. Their special shape makes it possible to carry out measurements in edge and expansion joints.

The advantage of flat electrodes (1 mm flat) is that there are no holes in the surface and the electrodes can be inserted through the edging strip after removing the base.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices like the T3000 or T510 with TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

TS16/200 application...TS 16/200 (length 200 mm),
Article number: 3.510.226.140

TS 16/300 (length 300 mm),
Article number: 3.510.226.145


TS 20/110 brush electrodes

With 110 mm long brush head (ø 7 mm) and insulated shaft. Brush electrode pair for the measurement of construction material moisture in hard and soft building materials. Since the stainless steel brushes join excellently with the construction material, no additional contacting agent is required.

These electrodes are used for targeted moisture measurement in homogeneous building materials without using a contact mass. The brush head establishes the connection to the goods to measure.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices like the T3000 or T510 with TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

Article number: 3.510.226.150


TS 60 hand electrode

Drive-in electrode for the measurement of wood moisture and building moisture. Unbreakable plastic handle with two hexagon union nuts in which electrode tips of the following lengths can be inserted:

  • 20 mm (max. penetration depth 14 mm)
  • 30 mm (max. penetration depth 24 mm)
  • 40 mm (max. penetration depth 34 mm)
  • 60 mm (max. penetration depth 54 mm)

Article number: 3.510.226.101

TS60 application...Fields of application are the measurement of wood moisture in cut timber or wooden board materials (e.g. chipboards, OSB panels or, fibreboards or parquet) and the measurement of moisture in soft, set building materials such as plaster, plaster mortar, aerated concrete or insulating materials.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices such as the T3000 or T510 With a TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.


TS 60 adapter set

TS 60 adapter set

With the TS 60 adapter set all MultiMeasure electrodes can be directly attached to the hand electrode TS 60. For this purpose, the adapters are threaded on both sides and are simply screwed in between the electrode head and the retainer tip of the hand electrode by means of a clamping ring.

Using this combination ensures that the electrodes are inserted into the measured material in parallel and at an optimal distance.

Article number: 7.200.001.280


TS 70 ram electrode

Ram electrode for the measurement of wood moisture. The electrode is suitable for moisture measurements in thick and hard woods. With moving hammer handle for precision zone and depth measurement especially in wood with different moisture distribution, e.g. liquid nests using Teflon-insulated electrode tips. These are available in lengths of 45 and 60 mm.

The electrodes are suitable for all moisture measuring devices with a connection facility for resistance measurement electrodes. In addition to Trotec measuring devices such as the T3000 or T510 With a TS adapter set and the appSensor BM22WP with an adapter cap for moisture electrodes, measurements can also be carried out using any other brand for resistance-based material moisture measuring processes.

To establish the connection, we recommend using the TC 20 connection cable BNC from Trotec. This measuring cable can be used universally for the plug-in contact of material moisture electrodes with banana jacks to any moisture measuring device – both Trotec measuring instruments and external devices with a BNC connector.

Article number: 3.510.226.105

Buy

TS 004/200 Round Electrodes, pair, 2 mm show in Trotec online shop

TS 004/200 Round Electrodes, pair, 2 mm

The prod electrodes are extremely thin and not insulated. They are 200 mm long and 2 mm in diameter. They can be used to measure moisture in building or insulation materials and can be inserted into the material via the joints between tiles, for example.

You save: 5 %

62.64 € 59.46 € incl. VAT Show net price (VAT not included)

buy

TS 004/300 Round Electrodes, pair, 2 mm show in Trotec online shop

TS 004/300 Round Electrodes, pair, 2 mm

These 300mm long ultra-thin prod electrodes have a diameter of only 2 mm and are therefore excellently suited for determining the moisture content of certain building and insulation materials. The electrodes can be inserted into the material at the joints between floor tiles, for example.

You save: 5 %

77.00 € 73.10 € incl. VAT Show net price (VAT not included)

buy

TS 008/200 Round Electrodes, pair, 4 mm show in Trotec online shop

TS 008/200 Round Electrodes, pair, 4 mm

The uninsulated electrodes are 4mm in diameter and 200mm long. They can be inserted into building and insulation materials at the joints where tiles meet, for example, in order to determine how much moisture there is in the material in question.

You save: 5 %

63.94 € 60.70 € incl. VAT Show net price (VAT not included)

buy

TS 008/300 Round Electrodes, pair, 4 mm show in Trotec online shop

TS 008/300 Round Electrodes, pair, 4 mm

Building and insulation materials can be examined with these prod electrodes to determine their moisture content. The electrodes are 4 mm in diameter and 300 mm long. This enables you to reach deeper layers of the material.

You save: 7 %

74.38 € 68.83 € incl. VAT Show net price (VAT not included)

buy

TS 012/200 Round Electrodes, pair, 4 mm, insulated show in Trotec online shop

TS 012/200 Round Electrodes, pair, 4 mm, insulated

The isolated electrodes are used to systematically inspect the moisture content in concealed component levels. The benefit of such a method is that measuring is only carried out via the electrode tip, which means that the readings are not distorted by other layers of the material.

You save: 5 %

75.68 € 71.84 € incl. VAT Show net price (VAT not included)

buy

TS 012/300 Round Electrodes, pair, 4 mm, insulated show in Trotec online shop

TS 012/300 Round Electrodes, pair, 4 mm, insulated

Very useful and beneficial measuring method designed to allow you to measure moisture in a just single layer with measuring materials comprising more than one layer. The sensor is 300mm long and has a diameter of only 4mm which means it is ideal for measuring deeper layers and through joints.

You save: 5 %

82.21 € 78.05 € incl. VAT Show net price (VAT not included)

buy

TS 016/200 Flat Electrodes, pair, insulated show in Trotec online shop

TS 016/200 Flat Electrodes, pair, insulated

The applications which these flat electrodes are used for is primarily the same as those for which the round electrodes are used. The benefit is that no additional holes have to be drilled for the electrodes, because they can be inserted through the edge joints behind the screed, for example.

You save: 5 %

75.68 € 71.84 € incl. VAT Show net price (VAT not included)

buy

TS 016/300 Flat Electrodes, pair, insulated show in Trotec online shop

TS 016/300 Flat Electrodes, pair, insulated

There is no need to drill any extra holes into the surface when using flat electrodes. This is because they are used in much the same way as round electrodes. They are 1mm flat and because of their length (30mm), they can be easily inserted into the lower layers of a material.

You save: 5 %

82.21 € 78.05 € incl. VAT Show net price (VAT not included)

buy

TS 020/110 Brush Electrodes, pair, insulated show in Trotec online shop

TS 020/110 Brush Electrodes, pair, insulated

The 110 mm long brush electrodes with insulated shaft are excellently suited for precise and system measuring of homogeous building materials without the use of a contact mass. The material you wish to measure is connected to the brush electrodes.

You save: 5 %

66.55 € 63.18 € incl. VAT Show net price (VAT not included)

buy

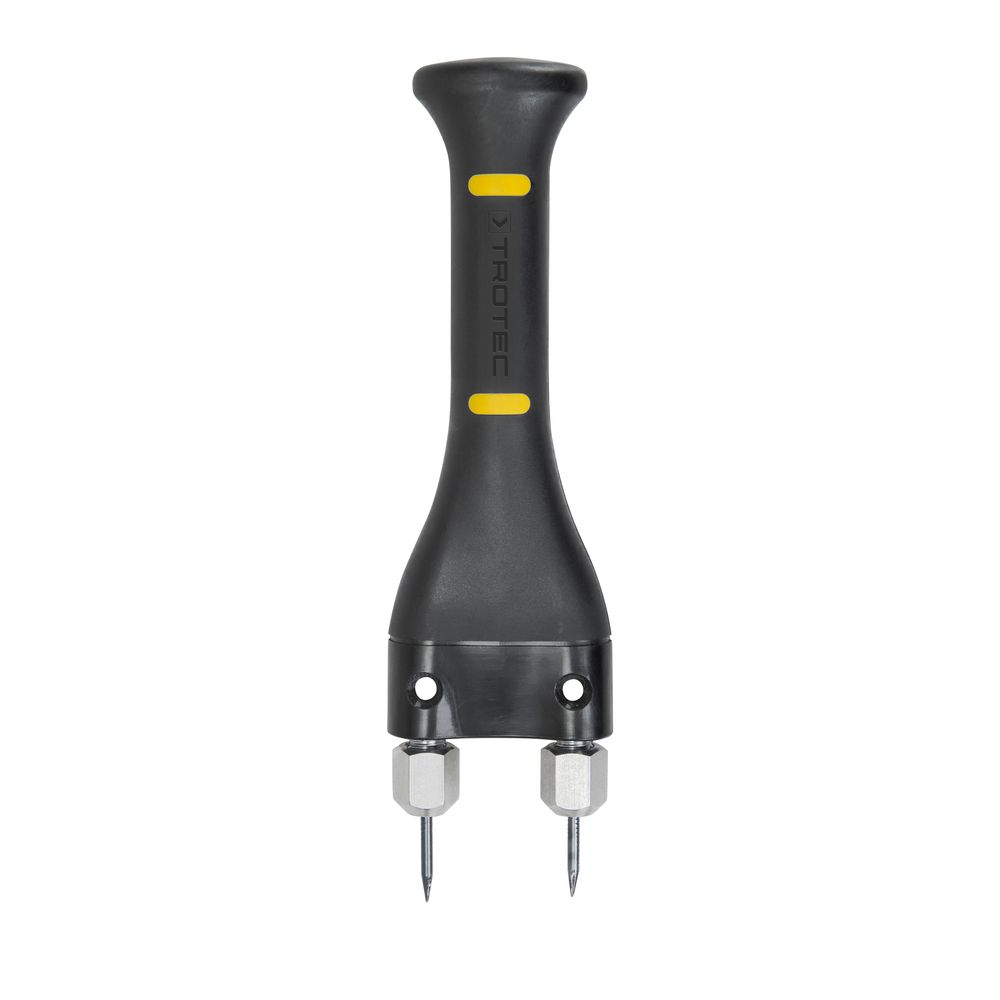

TS 060 Hand Electrode show in Trotec online shop

TS 060 Hand Electrode

This electrode is made of a shockproof synthetic material with two hexagonal coupling nuts at the top which are designed to hold the electrode tips in place. The following lengths are amongst those which can be used: 20 mm, 30 mm and 40 mm.

You save: 7 %

48.28 € 44.68 € incl. VAT Show net price (VAT not included)

buy

Adapter TS 060 on round or flat electrode show in Trotec online shop

Adapter TS 060 on round or flat electrode

The TS 060 adapter is used to connect all round and flat electrodes to the TS 060 hand electrode, without any additional cables. Simply screw the adapter from one side to the electrode and with the other side onto the holders of the electrode tips of the TS 060 hand held electrode.

You save: 5 %

26.10 € 24.78 € incl. VAT Show net price (VAT not included)

buy

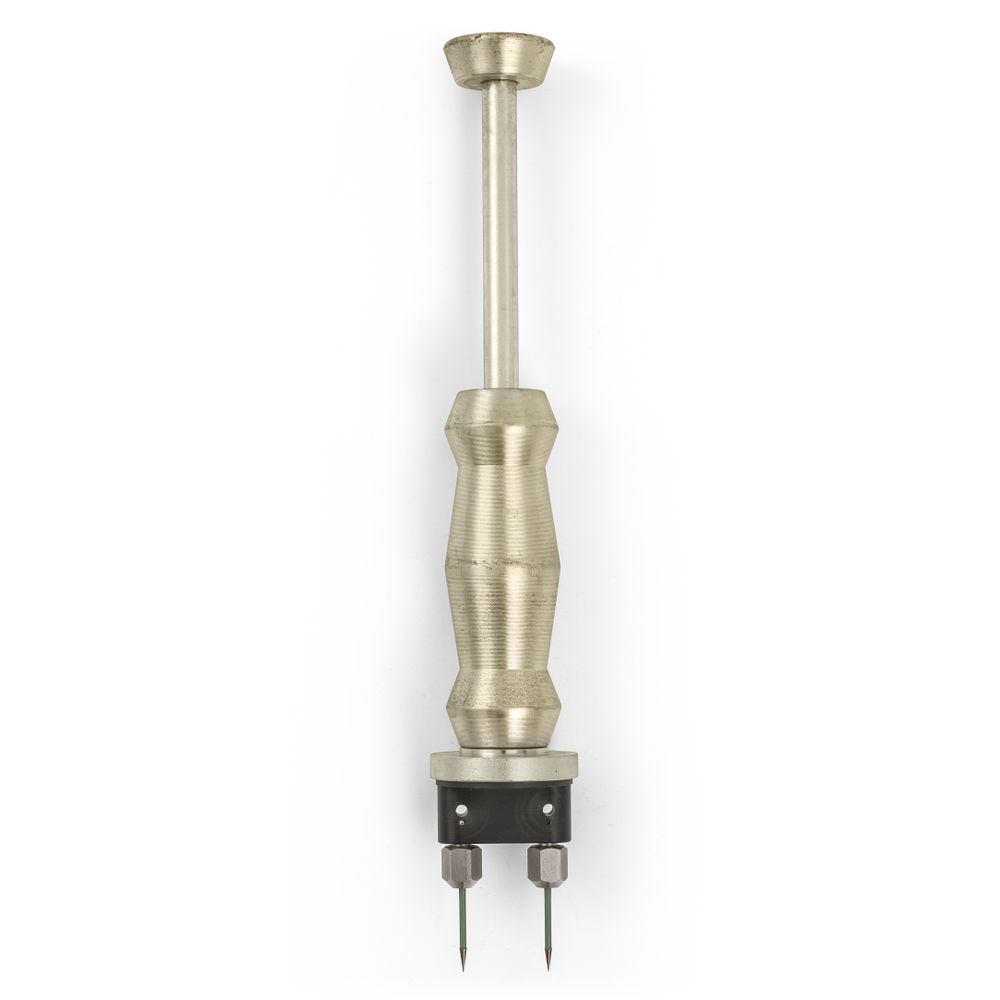

TS 070 Ram-In Electrode show in Trotec online shop

TS 070 Ram-In Electrode

This electrode is equipped with a flexible impact grip which allows you to penetrate even the hardest of woods. The teflon-coated electrode tips are designed to determine the moisture content in the lower layers, which then allows you to reach conclusions regarding moisture build-up.

You save: 15.34 €

150.00 € 134.66 € incl. VAT Show net price (VAT not included)

buy
