Angle grinder PAGS 10-115
For powerful severing, cutting and grinding with ease
Robust 500 W motor for efficient continuous operation
The PAGS 10-115 is the archetype of a conventional angle grinder with robust technology fitted into an ergonomically shaped construction. With its low own weight of only about 1,500 grams given into the bargain these features render the high-quality tool one of the lightest and most user-friendly angle grinders of its class. With good handling characteristics, smooth running characteristics and constant nominal speed as well as a striking value-for-money ratio the PAGS 10-115 can be recommended for both professionals and inexperienced novices.
Fitted with a reliable 500 W motor, ensuring a constant nominal speed of 12,000 revolutions per minute even under load, this both lightweight and wieldy all-round angle grinder is suited for virtually every type of application rendered necessary around your home and garden – be it reconstruction, expansion or renovation.

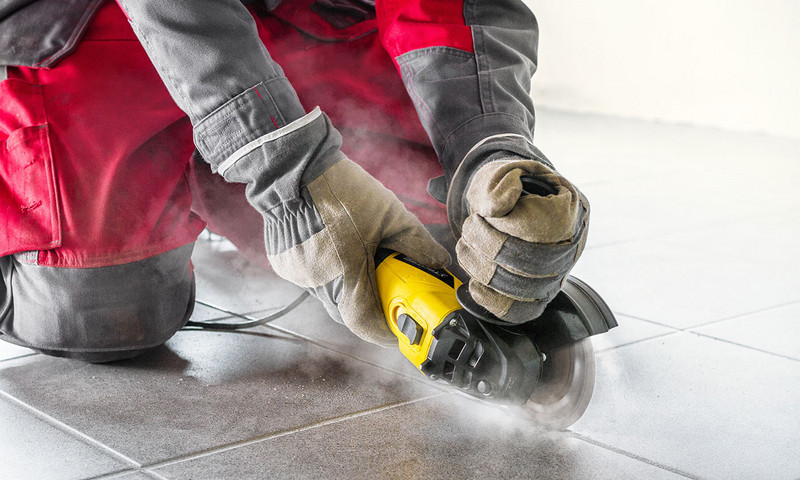

Various discs with a diameter of 115 mm can be used. Hence, you can not only flexibly apply the PAGS 10-115 for cutting or grinding metal, but also for cutting tiles or concrete blocks to length. Simply attach the disc suitable for the respective material to be processed to the PAGS 10-115. This can be done easily and quickly thanks to the integrated spindle lock.
The standard scope of delivery already includes a cutting disc for processing metal, so you can get started with your PAGS 10-115 right away. Further possible applications are open to your angle grinder when combined with our multi-part diamond cutting disc set – these accessories, too, are provided in the best Trotec brand quality.
Additional benefit of the PAGS 10-115: Safe, single-handed operation can be realized without difficulty
Like all angle grinders from the Trotec product range the PAGS 10-115 comes equipped with an additional handle that can be assembled on demand; it permits the safe two-handed operation for extended working periods.
Moreover, the PAGS 10-115 also exhibits excellent handling characteristics when used single-handedly. Other angle grinders are often too bulky and heavy to be used for temporary one-handed operation, but the wieldy, light-weight PAGS 10-115 with a compact handle size and a well-balanced weight distribution offers ideal prerequisites for temporary single-handed operation.
Benefit from this special practical advantage when roughing, grinding or polishing poorly accessible areas. Despite the remarkable 12,000 disc revolutions per minute the PAGS 10-115 rests comfortably and securely even in just one hand and, combined with the small disc diameter, enables you to reach even poorly accessible corners in which a second handle would be more of a handicap than a help.
Since the operating switch of the PAGS 10-115 is further provided with a locking mechanism for continuous operation, it does not have to be pressed constantly during grinding. This facilitates the safe, one-handed operation.
PAGS 10-115 – a good choice, it is safe to say

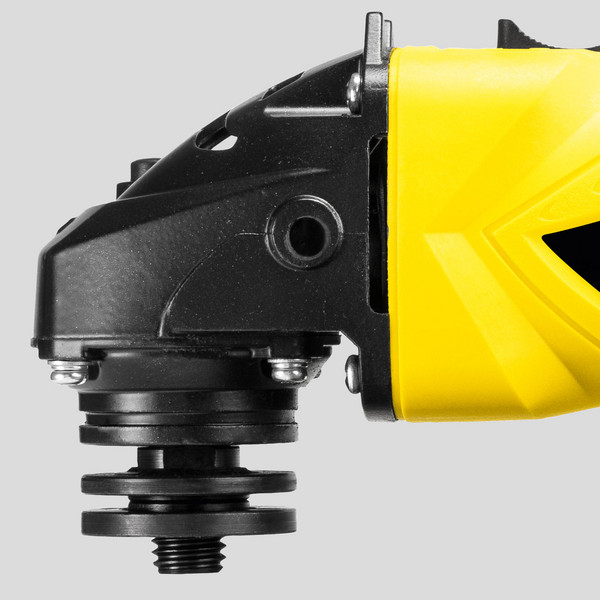

This angle grinder was designed for continuous operations without tiring. So all it takes for the continuous operation of the PAGS 10-115 is for you to switch it on. Its durable die-cast aluminium gearhead guarantees high stability and smooth running as well as a constant speed of 12,000 revolutions per minute even under load.
The supplied additional handle can be mounted as needed on either side of the device enabling the safe bimanual operation of the grinding machine for both right- and left-handers in any application scenario.
Moreover, the angle grinder PAGS 10-115 comes equipped with a restart protection which prevents an immediate restart of the angle grinder after a power failure and only allows the motor to start after the device has been switched on once again.

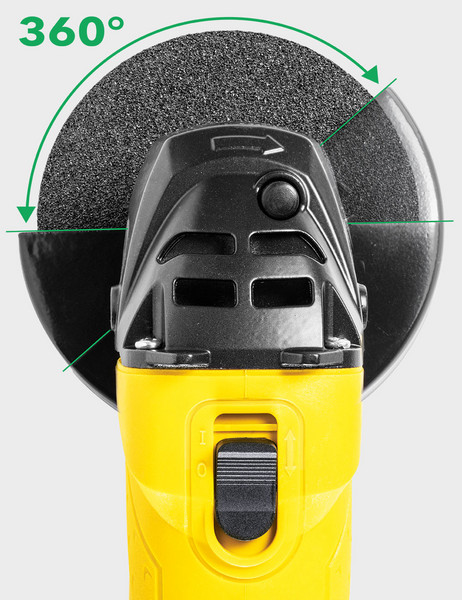

Last but not least, the protective cover of the PAGS 10-115, which can be variably adjusted, functions as a reliable shield against dust and sparks during grinding and cutting operations.
The key equipment features of the PAGS 10-115 at a glance
The PAGS 10-115 can be used for severing, cutting and grinding
All Angle grinders in direct comparison:
To find the Angle grinder which exactly meets your requirements, please consult the concise overview of all Angle grinders from Trotec, which we're providing to you here so that you can compare them directly to each other.
Models which you do not wish to include in your comparison can be easily dismissed with only one click.
A few practical benefits:
- Branded high-performance angle grinder in TÜV-tested quality
- Robust 500 W motor for efficient continuous operation
- Ideal for cutting, grinding and brushing metal as well as for cutting tiles and stone
- Constantly high performance with a steady nominal speed of 12,000 rpm even under load
- Durable, slim die-cast aluminium gearhead
- Lightweight, compact design with optimum handling characteristics – also perfect for single-handed operation
- Lockable switch for continuous operation
- Comfortable working due to low vibrations
- Spindle lock allowing simple exchange of discs
- Restart protection in case of a power failure
- Adjustable cutting disc guard for high occupational safety
- Additional handle mountable on either side
- Wide operating range owing to long connection cable
All important features at a glance
With the PAGS 10-115 you are always on the safe side, for this angle grinder is supplied in TÜV-tested quality, thus guaranteeing high value, safety and functionality.
Brand quality plus cost-efficiency
So far, you basically only had two options when choosing an angle grinder: either good but expensive, or mainly cheap.
Trotec's PowerTools now offer a smart choice: good and cheap at the same time. For we do not only stand for measuring devices and air conditioners, but also for power tools of brand quality: professional Trotec solutions with an excellent value-for-money ratio!
Which type of disc is to be used for the angle grinder?
Also, the following accessories are available for angle grinders:
- Roughing discs for processing metal (AD 125 MG)
- Sanding pads for removing old coats of paint, derusting metal or smoothening coarse timber
- Serrated washers for grinding or polishing
- Fur polishing discs (reduced speed)
- Wire brushes for derusting and to prepare soldering and welding work
- Carving and planer discs for processing wood
Abrasive wheels and cutting discs are available with diameters of 115, 125 and 230 mm. Depending on the selected grinding, cutting or roughing disc you can use the angle grinder for various tasks at home, in the garden or for the craft sector.
Large-sized discs are primarily intended for coarse work and only used for the bimanually guided angle grinder. For applications that require a greater level of precision, e.g. grinding off wood, the combination of smaller discs and a one-hand angle grinder is better suited.
All the discs for angle grinders supplied by Trotec can be ordered individually and as practical special offer package.
|Power input [W]||500|
|Cable length [m]||2.5|
|Rated speed [min-1]||12,000|
|Type of protection||IP20|
|Disc size [mm]||115|
|Sound values according to EN 60745|
|Sound pressure level [dB(A)]||90|
|Sound power level [dB(A)]||101|
|Uncertainty K [dB]||3|
|Vibration information according to EN 60745|
|Vibration emission value (ah) Main handle [m/s²]||5.78|
|Uncertainty (K) Main handle [m/s²]||1.5|
|Vibration emission value (ah) Additional handle [m/s²]||5.78|
|Uncertainty (K) Additional handle [m/s²]||1.5|
|Data cutting disc|
|Idle speed [min-1]||13,300|
|Max. disc speed [m/s]||80|
|Cutting disc diameter [mm]||115|
|Bore diameter [mm]||22.23|
|Cutting disc thickness [mm]||3|
|Functions and features|
|On/off switch with safety switch|
|Infinitely variable speed control|
|Accessories scope of delivery|
|Pin-type face wrench|
|Length (packaging excluded) [mm]||120|
|Width (packaging excluded) [mm]||300|
|Height (packaging excluded) [mm]||120|
|(packaging excluded) [kg]||1.5|
