BE52 digital true RMS multimeter

Bluetooth® digital multimeter with ten measuring functions and free-of-charge smartphone app for recording/evaluating the measured data

Measuring device for the harshest of work environments and all relevant measured variables

The battery-powered true RMS multimeter BE52 with integrated torch was specifically designed for safe usage in rough environments. With ten different functions for the most frequently required measured variables, the particularly durable ammeter covers a variety of possible applications in the DIY, handicraft, hobby and motor vehicle sectors. Whether you wish to carry out measurements in the field of housing and building technology, in the professional domain with electricity, occasional repairs of household appliances and electronic equipment or for problems in the vehicle electronics – the BE52 impresses with its excellent variety of functions and features even under the most adverse outdoor conditions. Wherever electricity flows, the multifunction measuring meter renders invaluable services for installation and troubleshooting.

Perfectly equipped for almost any power, voltage, capacitance and continuity measurements

With the BE52, DC and AC voltage measurements, direct current and alternating current measurements, capacitance measurements, frequency/duty cycle measurements resistance measurements, diode tests as well as acoustic continuity tests can be carried out.

Particularly durable and powerful true RMS multimeter

The measured values are shown in a clearly legible fashion on the large LC display with optional background illumination. Thanks to the practical hold function, the measured values remain readable even after you have completed the measurement process. When you carry out a continuity test, an acoustic signal indicates a short circuit or a closed circuit and therefore speeds up your work progress, since you do not have to keep your eyes on the display during the measurement. A fold-out foot that is integrated on the rear of the device allows you to keep both hands free for performing your measurement tasks. In this way, the measuring device can be put down onto an even surface in a position that makes it easy for you to read off the measurement results. The automatic switch-off mechanism of the device (auto power off) which responds after the device has been inactive for 15 minutes preserves the battery and is a practical feature.

Evaluation and documentation including MultiMeasure Mobile app

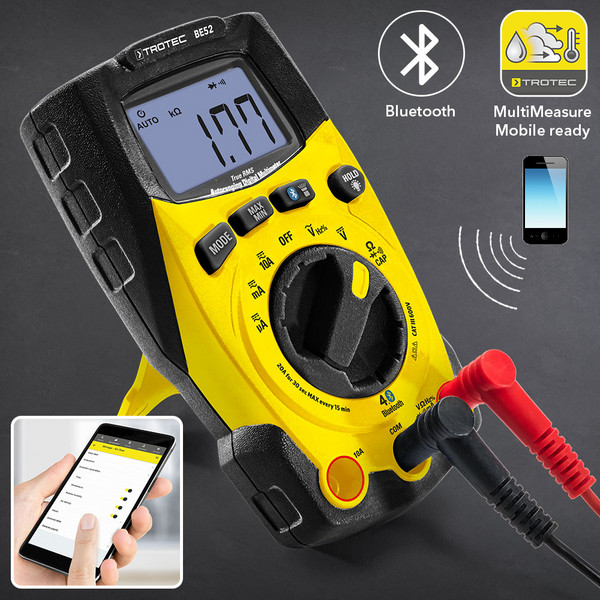

As a true RMS digital multimeter of the latest generation, the BE52 is 100 per cent "MultiMeasure Mobile ready" and thus prepared for all requirements of professional measurement data evaluation and documentation. Via the integrated Bluetooth® interface, the recorded measurement data is easily and conveniently transferred to a smartphone or tablet, where it can be professionally evaluated or recorded with the free MultiMeasure Mobile app.

The advantageous combination of the BE52 and professional MultiMeasure Mobile evaluation software allows you to make quick and reliable statements about electricity measurements at all times – including a wide range of analysis options such as the logging function for long-term measurements, graphic evaluations, the report function and data synchronisation with our professional cloud-based software MultiMeasure.

Equipment, scope of delivery and technical specifications

To ensure safe working within building installations (stationary loads with non-pluggable connection, distributor connections, integral units in the distributor), the digital multimeter BE52 complies with measuring category CAT III 600 V. In addition to the especially durable impact-proof plastic housing, the IP40 dust-protected BE52 impresses with its double insulation of measuring device and measuring lines in compliance with insulation protection class II. Ideal conditions to carry out measurements safely and reliably even in rough environments.

LC display: with optional background illumination
LCD display: 4-digit (max. indication 3999)

Dimensions: 121 x 67 x 45 mm
Weight: 205 g

DC voltage (V/DC)
Measuring range: 0.4 to 600 V
Accuracy 400 mV: ±(1.0 % +8 digits)
Accuracy 4 V/40 V/400 V: ±(1.0 % +3 digits)
Accuracy 600 V: ±(1.2 % +3 digits)

AC voltage (V/AC, 50 / 60 Hz)
Measuring range: 4 to 600 V
Accuracy 4 V/40 V/400 V: ±(1.0 % +5 digits)
Accuracy 600 V: ±(1.2 % +5 digits)

Direct current (A/DC)
Measuring range: 400 μA to 10 A
Accuracy 400 μA: ±(1.0 % +3 digits)
Accuracy 4000 μA/40 mA/400 mA: ±(1.5 % +3 digits)
Accuracy 10 A: ±(2.5 % +5 digits)

Alternating current (A/AC)
Measuring range: 400 μA to 10 A
Accuracy 400 μA: ±(2.0 % +5 digits)
Accuracy 4000 μA/40 mA/400 mA: ±(2.5 % +5 digits)
Accuracy 10 A: ±(3.0 % +7 digits)

Measuring range: 40 nF to 4000 μF
Accuracy 40 nF: ±(5.0 % +35 digits)
Accuracy 400 nF/4 μF/40 μF: ±(3.0 % +5 digits)
Accuracy 400 μF: ±(4.0 % +5 digits)
Accuracy 4000 μF: ±(5.0 % +5 digits)

Resistance (Ohm)
Measuring range: 400 Ω to 40 MΩ
Accuracy 400 Ω: ±(1.0 % +4 digits)
Accuracy 4 kΩ/40 kΩ/400 kΩ/4 MΩ: ±(1.5 % +5 digits)
Accuracy 40 MΩ: ±(3.5 % +5 digits)

Measuring range: 10Hz - 10KHz
Accuracy: ±(1.0 % +5digits)

Duty cycle
Measuring range: 1% to 99%
Accuracy: ±(1.2 % +5 digits)

Integrated torch function

Scope of delivery:

  • Digital multimeter BE52
  • AAA batteries (2x)
  • Safety cables with test probes (2x)
  • Operating manual

Difference between common measuring devices and measuring devices with the true RMS function

In the measurement process, a digital measuring device without true RMS function assumes that the AC signal is sinusoidal and therefore converts the raw signal measured to be displayed on the basis of this assumption. However, in fact, the electrical current flow is never purely sinusoidal. Consumers like switch-mode power supplies, speed or power controllers, etc. cause faults which in turn produce distorted current profiles. Since these profiles are no longer purely sinusoidal, they cannot be measured correctly without true RMS functionality.

True RMS measuring devices can also measure non-sinusoidal signal characteristics correctly and therefore are able to directly determine the true r.m.s. value of any alternating quantity. In this respect, the true root mean square stands for the correct determination and output of the true r.m.s. value.

MultiMeasure Mobile app – smart measuring data acquisition and evaluation of measuring data

With the free MultiMeasure Mobile app the captured measurement data becomes even more transparent. Just like the analysis software MultiMeasure Studio Professional 2.0 developed by Trotec for administration, analysis and report generation of measurement data on your PC, the free MultiMeasure Mobile app for Android and iOS devices also allows for professional measurement data management with a multitude of useful functions. The hand-held measuring device BE52 and numerous other measuring devices with Bluetooth® interface are automatically identified by the app and can be connected to the mobile terminal device quickly, easily and wirelessly.

The functionality of the MultiMeasure Mobile app is way beyond the simple indication of the captured measurement values. All recorded data can be displayed either numerically or in form of a chart and, by means of the logging function, can also be recorded as a series of measurements for long-term evaluation. Assigning measurement data to different projects (e.g. departments, rooms, buildings, etc.) with the app that handles a great number of clients is a child's play – including text and report templates for professional measurement data reports.

Info video on appSensors and MultiMeasure Mobile

In our video you can get a quick overview of the measurement options of the Trotec appSensors and get first insights into the functionality of the MultiMeasure mobile app. Watch it now!

Watch the video now!

Direct link to MultiMeasure Mobile in the app store:

MultiMeasure Mobile for Android
MultiMeasure Mobile for iOS

The technical details of the true RMS multimeter BE52

BE52 – dimensions
Small, light and handy: The BE52 impresses with a small size in spite of its high performance. With its compact dimensions, the measuring device fits into every tool bag.
BE52 – display
Large, clearly arranged and expressive: The large LCD screen with adjustable background illumination makes it possible to easily read off the measured data recorded even when lighting conditions are poor.
BE52 – easy handling
High functionality: The desired measurement method can be selected conveniently and easily via a practical rotary switch.

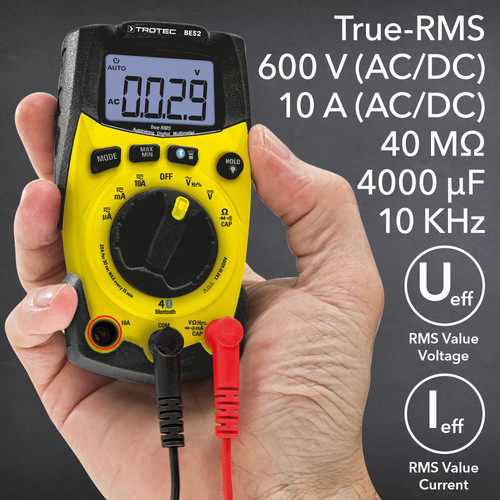

BE52 – true RMS
Simply more accurate and effective: Thanks to true RMS, the true r.m.s. value of any alternating quantity can be measured with the BE52.
BE52 – MultiMeasure Mobile ready
Do not let the compact dimensions of the BE52 mislead you. In combination with the Multi Measure Mobile app, the hand-held measuring devices shows its true size. A wide range of evaluation tools and report functions turn the smartphone or tablet into a professional measuring station with almost unlimited possibilities.
BE52 – LED light
Optimal visibility: In dark work environments, the integrated torch provides for optimum illumination of the working area. Protected by IP40, the BE52 is dust-proof.
BE52 – scope of delivery
Ready for immediate use: The hand-held measuring device BE52 is supplied including safety cables with test probes and AAA batteries.
BE52 – numerous functions
All from a single source: The BE52 enables you to measure DC voltage, AC voltage, direct current , alternating current and resistance values conveniently and precisely.

If you require a high-performance true RMS multimeter suited for manifold fields of application, the BE52 is your partner

BE52 – detecting errors in the vehicle electronics
Whether it’s used for maintenance and repair tasks or error detection: In the car repair shop and in your garage at home, the BE52 impresses as an ultimate inspection tool for testing and measuring electrical vehicle components, sensors and lines.

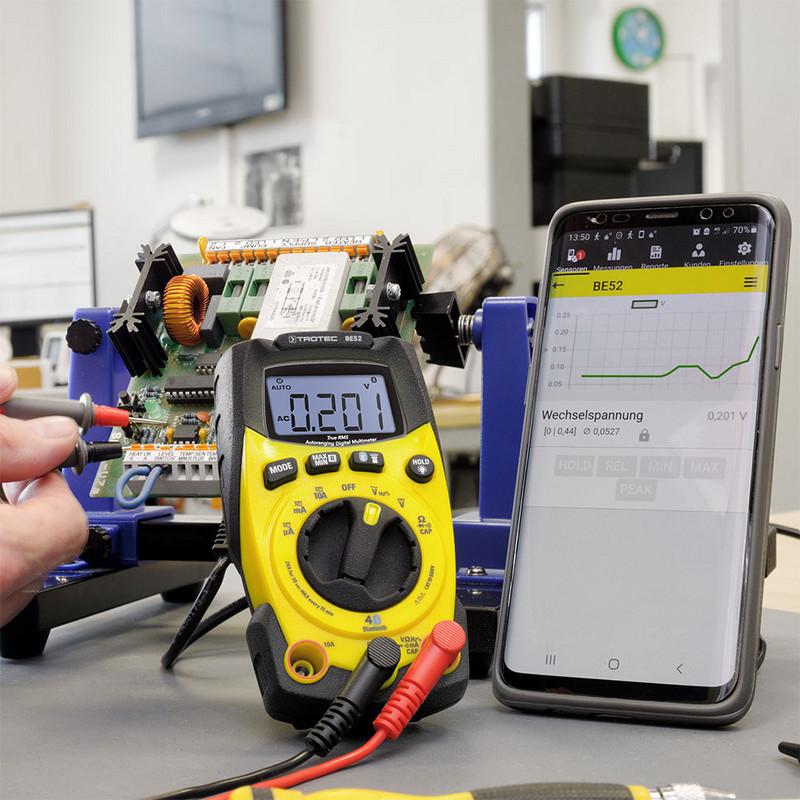

BE52 – testing household appliances and electrical equipment
Save the money that you would otherwise spend when purchasing several measuring devices for the odd repair of various household appliances and electrical equipment. The universally usable true RMS multimeter combines all necessary functions, e.g. for measuring voltage, power, continuity and resistance. The beneficial combination of BE52 and professional MultiMeasure Mobile evaluation software allows you to make quick and reliable statements about measurements at all times.
BE52 – PCB testing
The handy BE52 with its extensive measurement possibilities is ideally suited for almost any maintenance and service operations in narrow building installations and is therefore perfectly suitable for caretakers, service technicians and homeowners.

All multimeters in direct comparison:

To help you find exactly the right digital multimeter for you, here you have the opportunity to clearly compare all multimeters from Trotec.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • Digital multifunction measuring meter with a variety of different measuring functions
  • 4-digit LC display (max. indication 3999)
  • Especially durable and powerful
  • Automatic range selection
  • CAT III 600 V
  • Direct current and alternating current measurement up to 10 A
  • DC and AC voltage measurement up to 600 V
  • True RMS function: precise measurement by direct determination of the true root mean square
  • Resistance measurement
  • Continuity test and diode test
  • Measurement of frequency, capacitance and duty cycle
  • Hold function
  • Impact-proof housing
  • Dust-protected – protection class IP40
  • Insulation protection class II for measuring device and measuring lines
  • Hold function
  • Compatible with the MultiMeasure Mobile app (Bluetooth)
  • Display with optional background illumination
  • Battery-saving switch-off mechanism
  • Battery status indication

MultiMeasure Mobile – all of the app's advantages at one glance:

  • Automatic identification of the BE52 and other measuring devices with Bluetooth® interface
  • Quick and intuitive navigation
  • Numerical measured value indication or else in form of a chart / matrix
  • Integrated report function for the documentation directly on site
  • PDA function for the organization of measurement data and documents
  • Customer management already integrated
  • Manifold analysis options directly in the app
  • Storage of measured values linked to photos
  • Matrix measurements, also linked to photos
  • Complete data synchronisation with MultiMeasure Professional via cloud


Digitales True-RMS-Multimeter BE52 show in Trotec online shop

Digitales True-RMS-Multimeter BE52

You save: 28 %

69.95 € 49.95 € incl. VAT Show net price (VAT not included)


Technical data

Technical data
General information
  Article number 3.510.205.252
DC voltage [V/DC]
  Min. measuring range | DC voltage [V] 0.4
  Max. measuring range | DC voltage [V] 600
  Accuracy ±[%] (0.4 V) ±(1.0 % +5)
  Accuracy ±[%] (4 V/40 V/400 V/600 V) | DC voltage ±(1.0 % +3)
AC voltage [V/AC]
  Min. measuring range | AC voltage [V] 4
  Max. measuring range | AC voltage [V] 600
  Accuracy ±[%] (4 V/40 V/400 V/600 V) | AC voltage ±(1.2 % +3)
Direct current [A/DC]
  Min. measuring range | Direct current [µA] 400
  Max. measuring range | Direct current [A] 10
  Accuracy ±[%] (400 µA) ±(1.0 % +3)
  Accuracy ±[%] (4000 µA/40 mA/400 mA) ±(1.2 % +3)
  Accuracy ± [%] (4 A / 10 A) | direct current ±(1.2 % +3)
Alternating current [A/AC]
  Min. measuring range | Alternating current [A] 4
  Max. measuring range | Alternating current [A] 10
  Accuracy ±[%] (400 µA/4000 µA/0.04 A/0.4 A) ±(1.2 % +3)
  Accuracy ±[%] (4 A/10 A) | alternating current ±(1.8 % +5)
Resistance [Ω]
  Min. measuring range [Ω] | Resistance 400 Ω
  Max. measuring range [Ω] | resistance 40 MΩ
  Accuracy ± [%] (400 Ω/4 kΩ/40 kΩ/ 400 kΩ/4 MΩ) ±(1.5 % +5)
  Accuracy ±[%] (40 MΩ) ±(2.5 % +20)
Capacity [F]
  Min. measuring range | Capacity [nF] 40
  Max. measuring range | Capacity [uF] 4,000
  Accuracy ± [%] 5
Frequency [f]
  Min. measuring range | Frequency [Hz] 10
  Max. measuring range | Frequency [kHz] 10
  Accuracy ± | Frequency [%] 1.2
Duty cycle [%]
  Min. measuring range [%] | Duty cycle 0.1 %
  Max. measuring range [%] | Duty cycle 99.9 %
  Accuracy ± | Duty cycle [%] 1.2
  Counts 4,000
Measurement rate
  Measurement rate 3 Hz
Housing design
  Connection sockets for 4 mm safety connectors (banana)
Measuring category
  CAT III (600 V)
  EN 61010-2-031
  Overvoltage category 2
Type of protection
Power supply
  Internal (battery)
  Battery type 2 x 1.5 V, AAA
  Data interface Bluetooth 4.0
Ambient conditions
  Operation - min. temperature [°C] 5
  Operation - max. temperature [°C] 40
  Max. humidity range [% r.F.] 80
  Length (packaging excluded) [mm] 125
  Width (packaging excluded) [mm] 65
  Height (packaging excluded) [mm] 45
  (packaging excluded) [kg] 0.205
Standard scope of delivery
Standard scope of delivery
  Measuring device
  Safety measuring lines with test probes
  Operating manual
Ascertainable measured values and functions
Internal sensors
  AC voltage [V/AC]
  DC voltage [V/DC]
  Resistance [Ω]
  Alternating current [A/AC]
  Direct current [A/DC]
  Capacity [nF, µF]
  Frequency [Hz, kHz, MHz]
  Duty cycle [%]
Functions and features
  Polarity indicator
  Max./min. recordings
  Measured value hold function
  Automatic measuring range selection
  Backlit display
  Integrated torch
  Automatic switch-off
  Battery status indication
  Indication when exceeding the measuring range
  Diode testing
  Continuity test

 standard equipment

 optionally available

 not available
