Domestic water supply system TGP 1050 E
Domestic water pump with pre-filter and pressure vessel of stainless high-grade steel – ideal for energy- and cost-saving self-sufficient water supply.
The portable complete solution of stainless steel
Every day we consume vast quantities of water in the household – for example when washing clothes, carrying out cleaning work, flushing the toilet or watering the garden. These water applications, however, in most cases do not require drinking water quality. With the domestic water supply system TGP 1050 E you make yourself independent of the expensive drinking water provided by the local supplier where the service water supply in your home, your holiday cottage or in the garden is concerned. In this way you save money and make a substantial contribution to environmental protection.
The robust and portable domestic water supply system in its stainless high-grade steel design delivers rainwater or groundwater from reservoirs, collection containers, cisterns, ponds, stretches of running water, or wells, in order to feed it to your domestic water supply network as free-of-charge service water. In this process, coarse dirt, small stones or other particles from a size of 1 mm are reliably held back by the integrated nylon pre-filter.
Self-obtained water saves hard cash every day
With an impressive pump capacity of 1,000 watts as well as a maximum flow rate of 3,300 l/h the domestic water supply system TGP 1050 E distributes self-obtained service water from a depth of up to 7 metres to various consumption points in the house and garden in a fully automatic fashion, the maximum delivery head of up to 30 metres guaranteeing reliable transport of the water even to higher floors. The 19-litre full stainless steel pressure tank ensures a constant water pressure in the domestic water pipeline even if the pump is currently not working. An energy-saving, automatic on/off switching mechanism permanently monitors the pressure tank and only activates the pump if the tank pressure drops below 1.5 bar, or deactivates it if the required pressure of 3 bar is re-established. Both suction and pressure connection come with an internal thread that has a diameter of 1'' or 3.33 cm (G1). The domestic water supply system can be switched on or off manually via a switch with a protective cover, which is located at the side.
High-quality, durable and easy to transport
The high-quality domestic water supply system TGP 1050 E is reliably protected against rust and also against splash-water from all sides as per IPX4 type of protection. Both the pump head and the pressure tank are made of top-quality stainless steel. The yellow metal pump housing is coated with protective paint, thus making it weather-resistant. In order to allow you to transport the domestic water supply system especially easily, the whole design is enclosed by a stable, black plastic enclosure with a carrying handle. The equipment technology is equally robust and durable as the housing. The integrated ceramic face seal reliably prevents water from leaking, and the aluminium winding motor convinces by its high thermal conductivity, resilience and corrosion-resistance. Furthermore the domestic water supply system is equipped with a thermal protection circuit to protect it from overheating.
With a pre-filter against dirt particles
The domestic water supply system TGP 1050 E comes with an integrated pre-filter which reliably holds back plant parts, small stones or coarse dirt particles with its close nylon mesh, preventing particles from a size of 1 mm from entering the pump interior. This protects the pump from contamination and prevents dirt deposits in the pipes and tubes. The washable pre-filter can be cleaned quickly and easily.
Large tank with energy-saving pressure circuit
The 19-litre pressure adjusting tank of the domestic water supply system stops the feed pump from switching on if smaller quantities of liquid such as a glass of water are drawn. Only if the tank pressure drops below the required start-up pressure after the water has been turned on several times, the pump will switch on to refill the tank. This saves electricity, reduces the wear of the pump and altogether allows for an operation that is as silent as possible. To ensure that you can conveniently fill the domestic water supply system TGP 1050 for the first time it is provided with a water filling hole and a discharge nozzle to drain the residual water from the pressure tank. Drill holes in the pump foot allow to install the device stably in a fixed position in indoor or roofed outdoor areas.
Save up to 50 % of expensive tap water!
Including alternative water sources for the daily use in your home's water supply network is only reasonable – both from an ecological and economical viewpoint. After all, you can save money with every application of the pump. Not only is it much less expensive to water your garden during the summer with pumped, non-potable service water as opposed to with purchased industrial water – the alternative water supply for flushing the toilet can be ensured all year round. You can also run your washing machine on rain or well water. Self-sufficiently pumped process water can even be used as shower water in the bathroom, depending on the quality and purity of the water. And it pays!
With an average of 250 washing cycles a three-person household consumes more than 18,000 litres of drinking water per year. On top of this, approx. 43,000 litres of water are flushed down the toilet and 1,750 litres are used for watering in the garden. This totals up to more than 62,000 litres which represents 50 % of the average water consumption of a family of three. An enormous savings potential that can be exploited by using the domestic water supply system TGP 1050 E.
And this benefits you in more than one way! Drinking water from the tap is often limy. On the one hand the minerals contained in the lime are beneficial to our health, at the same time, though, the hard water leads to limescale in household appliances thus reducing their service life. Soft rainwater on the other hand goes easy on your washing machine which extends its lifespan.
Therefore, if you are in the fortunate position of being able to "tap" a well, a cistern, or even standing water on your own premises, you should utilize these alternative water sources with the domestic water supply system TGP 1050 E with its impressive power of 1,000 watts.
Universally applicable in the house and for the purpose of garden irrigation
There are many alternative water sources: wells, rainwater tanks, brooks, and cisterns are suited to constantly deliver service water on a free-of-charge basis and supply it to the local water network. In any household and garden applications that do not require the quality of drinking water you save expensive tap water by the use of process water obtained from private sources.
Ideal for the supply of toilets and washing machines
Washing machines and toilet flush systems are two of the greatest water consumers in the household. Here you can save large quantities of drinking water and a substantial amount of money almost every day by using a domestic water supply system. Depending on the water quality and its purity, process water from the cistern can for example also be used for showering.
Free-of-charge water for cleaning
No matter whether you want to hose down the car, the pavement, the terrace or the courtyard entrance – the domestic water supply system TGP 1050 E supplies the required service water for all cleaning work with the high-pressure cleaner or garden hose.
Irrigation of lawns, flower beds, plants and trees

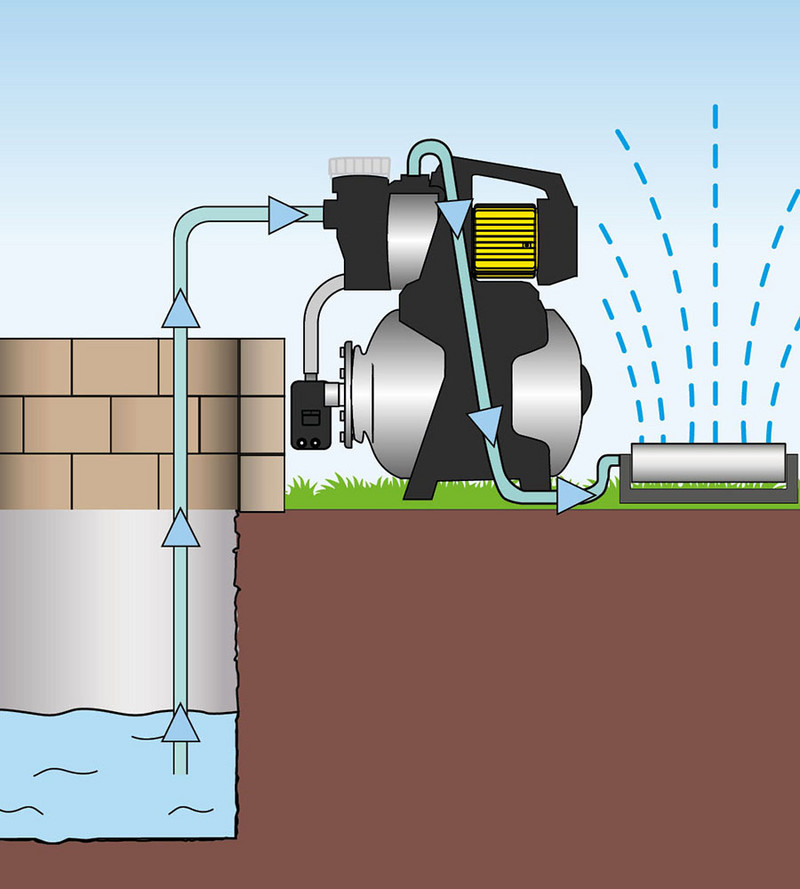

With the domestic water supply system TGP 1050 E you no longer need to waste expensive drinking water for watering your garden. Rely on process water delivered free of charge to supply your lawn sprinkler, micro-drip system or the garden hose. In particular if the water consumption skyrockets in summer, the domestic water supply system TGP 1050 E noticeably saves money and brings your garden to full bloom just as well.
The portable stainless steel domestic water supply system TGP 1050 E can be ideally used as a corrosion-resistant self-sufficient water supply system with dirt filters for clean service water in the house or garden.
Special equipment features of the TGP 1050 E
All Domestic water supply systems in direct comparison:
To find the Domestic water supply system which exactly meets your requirements, please consult the concise overview of all Domestic water supply systems from Trotec, which we're providing to you here so that you can compare them directly to each other.
Models which you do not wish to include in your comparison can be easily dismissed with only one click.
A few practical benefits:
- Impressive 1,000 watts of power for pumping up to 3,300 litres per hour
- Maximum delivery head: 30 m, suction head up to 7 m
- With pre-filter for protection against coarse dirt particles (> Ø 1 mm)
- Integration into the existing domestic supply network possible
- Ideal to provide for process water supply in the house or for the effortless irrigation of gardens
- Robust pump housing and pressure tank of weatherproof stainless steel, high corrosion resistance by aluminium winding motor
- Stable 1" metal threading at the suction and pressure side
- High-quality ceramic face seal for a long lifetime
- Maintenance-free motor with integrated thermal protection circuit activated by overheating of the device
- For pumping out clear water with suspended particles sized up to 2 mm
- IPX4 type of protection for the pump – splash-proof from all directions
- IP44 type of protection for the mains plug – splash-proof
- User-friendly thanks to the large inlet opening for easy filling of the pump
- Protected against frost – residual water can be discharged conveniently via the water drain screw
- Manual on/off switch with protective cover
- Reduced energy consumption and wear thanks to the integrated pressure circuit
- Convenient carrying handle for a quick change of location
- Stable pump foot with holes for easy fastening
Benefit from the Trotec brand quality guaranteeing high value, safety and functionality. Via the registered GS mark the inspection authority TÜV Rheinland certifies that, if used foreseeably and as intended, the device does not pose a risk to the health and safety of the user.
Brand quality plus cost-efficiency
Reliable, powerful and suited for the most challenging fields of application: these are some of the quality features of Trotec's domestic water supply systems. Owing to their high capacity they are able to withstand the most extreme conditions. HighPerformance for demanding applications – after all, Trotec stands for brand quality and professional solutions with an excellent value-for-money ratio!
All of Trotec's pumps at a glance
The robust and portable domestic waterworks TGP 1050 E in stainless steel design pumps rainwater or groundwater from reservoirs, collecting tanks, cisterns, ponds, flowing waters or wells to feed it into your domestic water supply network as free service water.
You save: 97.01 €
192.34 € 95.33 € incl. VAT Show net price (VAT not included)
|Mains connection||230 V/50 Hz|
|Power input [W]||1,000|
|Connection plug||CEE 7/7|
|Cable length [m]||1.2|
|Max. conveying capacity [l/h]||3,300|
|Grit of pump [mm]||2|
|Max. delivery head [m]||30|
|Max. suction height [m]||7|
|Automatic switch-on [bar]||1.5|
|Automatic switch-off [bar]||3|
|Max. water temperature [°C]||35|
|Tank volume [l]||19|
|Type of protection||IPX4|
|Sound pressure level [dB(A)]||72|
|Sound power level [dB]||88|
|Uncertainty (K) [(K)]||2|
|Stainless steel housing|
|Stainless steel pump head|
|Length (packaging excluded) [mm]||270|
|Width (packaging excluded) [mm]||425|
|Height (packaging excluded) [mm]||520|
|(packaging excluded) [kg]||11|
|Equipment, features and functions|
|Functions and features|
|Automatic switch-on and switch-off||Auto restart, Auto stop|
|Mechanical pressure switch|
|Thermal overload protection [° C]||150|
|Water inlet opening|
|Water drain screw|
|Stainless steel screws|
|Suitable for both permanent operation (>10h) or salt-water operation|
|Dry run protection|
|Connection at pressure tank for pressure compensation|
|Standard scope of delivery|
|Accessories scope of delivery|
|Suitable for hose (hose DN)|
|Suitable for thread|
|Tear-resistant nylon cord, 12 m|
