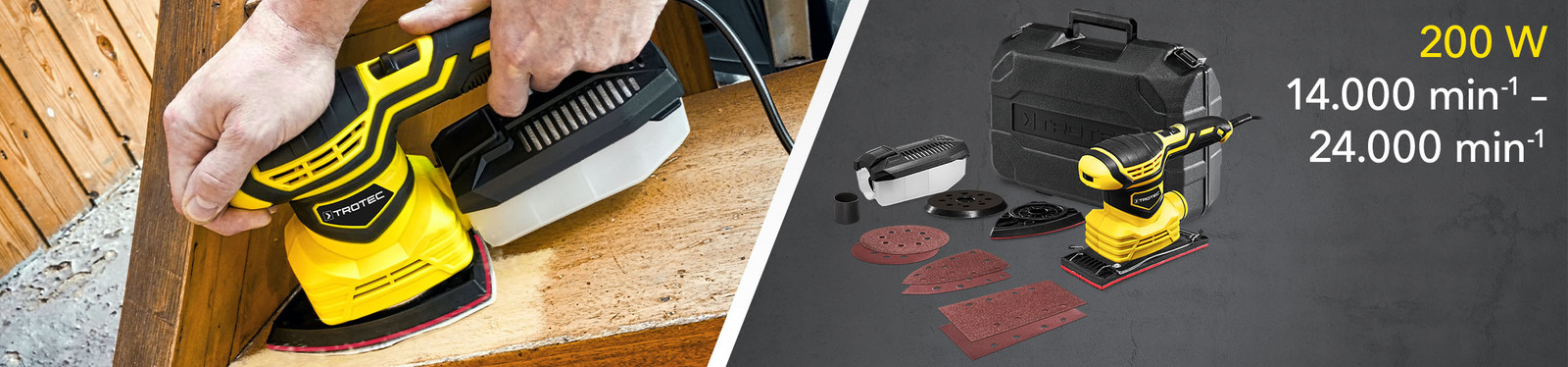

3-in-1 multi-functional sander PMSS 11-220
For larger areas, fine sanding and reaching edges and corners – one device can accomplish all
Three devices in one:delta sander, random orbital sander and orbital sander
Orbital sander, delta sander or random orbital sander – which is the better choice? When faced with a great variety of grinding applications this certainly could be a difficult decision if it weren't for the multi-functional sander PMSS 11-220 from Trotec. With this 3-in-1 multi-functional sander you are optimally equipped with a suitable sanding tool for any situation seeing as its three variably interchangeable sanding plates ensure that the PMSS 11-220 can be used as needed: as orbital sander, delta sander or random orbital sander.
Focussing on the well-rounded talents of its users, the PMSS 11-220 comes with an equally distinct versatility. As a genuine multi-function tool the PMSS 11-220 can be turned into a full-fledged orbital sander, delta sander or random orbital sander in just a few steps by exchanging the three supplied sanding plates.
For each type of application a powerful 200 W motor operates reliably inside this multi-functional sander without any sign of weakening and allowing the stepless preselection of the oscillation rate between 14,000 and 24,000 oscillations per minute. This ensures material-compatible working on any surface.
The PMSS 11-220 – for an optimally prepared ground
Whether you want to remove old coats of paint from large areas, polish and smoothen surfaces or sand precisely and seamlessly in corners, all of the above grinding operations can be realized without difficulty using the three exchangeable sanding plates of the PMSS 11-220.
The suitable sandpaper for each task can be attached quickly and without the need for tools. For this purpose all sanding plates come equipped with a Velcro® fastening system, the plate of the orbital sander is further provided with a clamping tool. Consequently, you can also use sandpaper without Velcro® backing for this particular sanding application.
Compared to other grinding machines on the market, the sanding plates of the PMSS 11-220 are characterized by their large grinding surface. A greater grinding surface goes hand in hand with a faster working progress – another advantage of this Trotec tool.
The delivery scope of the PMSS 11-220 includes a coarse 80-grit and a fine-grained 240-grit sandpaper for each sanding plate.
All-rounder with excellent guidance properties
You will search in vain if you are looking for a trigger that constantly needs to be pressed, for this grinding machine was designed for continuous operations without tiring. So all it takes for the continuous operation of the PMSS 11-220 is for you to switch it on.
This multi-purpose grinder can be directed safely and precisely even during longer, large-scale operations: the PMSS 11-220 has a perfectly positioned centre of gravity and, in addition to the main handle fitted with a soft grip rubber inlay for extra firm grip, is equipped with a guide knob enabling secure two-hand operation. To ensure the convenient accessibility during operation, the front knob also houses the setting wheel for the selection of the oscillation rate, hence it can be adjusted as needed for the respective material.
An all-round clean affair
Sanding, however excellent, always comes with a considerable amount of abrasion debris. No problem for the multi-functional sander PMSS 11-220 from Trotec, it offers two means of keeping your workplace dust-free.
For one thing: a robust dust collector with integrated filter system can be connected to the device by way of snap locks and detached as easily for emptying. Furthermore, you can also connect an external dust extraction system – all connection accessories required for this, as well as the dust collector, are already included in the standard scope of delivery.
The key equipment features of the PMSS 11-220 at a glance
The multi-functional sander PMSS 11‑220 is an extremely versatile tool
A few practical benefits:
- Three devices in one: delta sander, random orbital sander and orbital sander
- Constantly high performance even under load
- Designed for continuous operation
- Infinitely adjustable oscillation rate
- Simple exchange of sanding sheets thanks to Velcro® or tool-free clamping system
- Equally suitable for both right- and left-handers
- Plug-on dust collector with filter system
- Connection adapter for external dust extraction
All important features at a glance
With the PMSS 10-220 you are always on the safe side, for this multi-functional sander is supplied in TÜV-tested quality, thus guaranteeing high value, safety and functionality.
Brand quality plus cost-efficiency
So far, you basically only had two options when choosing a multi-functional sander: either good but expensive, or mainly cheap.
Trotec's PowerTools now offer a smart choice: good and cheap at the same time. For we do not only stand for measuring devices and air conditioners, but also for power tools of brand quality: professional Trotec solutions with an excellent value-for-money ratio!
Mit dem 3-in-1-Multifunktionsschleifer PMSS 11‑220 verfügen Sie in jeder Situation über das passende Schleifwerkzeug. Aufgrund seiner drei variabel nutzbaren Wechsel-Schleifplatten können Sie den PMSS 11‑220 bedarfsgerecht als Schwing-, Delta- oder Exzenterschleifer verwenden.
Sie sparen: 37 %
53.40 € 33.28 € inkl. MwSt. Nettopreis exkl. MwSt. anzeigen
|Power input [W]||200|
|Idle speed||7.000 - 12.000|
|Oscillation rate selection [opm] combined||14.000 - 24.000|
|Orbit diameter [mm]||2|
|Grinding surface Delta sanding plate [cm²]||108|
|Grinding surface Orbital sanding plate [cm²]||165|
|Grinding surface Random orbital sanding plate [cm²]||116|
|Mains connection||230 V/50 Hz|
|Cable length [m]||3|
|Sound values according to EN 62841|
|Sound pressure level [dB(A)]||79|
|Sound power level [dB(A)]||90|
|Uncertainty K [dB(A)]||3|
|Vibration information according to EN 62841|
|Vibration emission value (ah) Main handle [m/s²]||10.9|
|Uncertainty (K) Main handle [m/s²]||1.5|
|Vibration emission value (ah) Front handle [m/s²]||13.7|
|Uncertainty (K) Front handle [m/s²]||1.5|
|Length (packaging excluded) [mm]||80|
|Width (packaging excluded) [mm]||220|
|Height (packaging excluded) [mm]||170|
|(packaging excluded) [kg]||1.5|
|Equipment, features and functions|
|Functions and features|
|Infinitely variable nominal oscillation rate|
|Abrasive belt change by means of tool-free clamping system|
|Abrasive belt change by means of Velcro® system|
|Attachable dust collector with filter system|
|Standard scope of delivery|
|Accessories scope of delivery|
|Orbital sanding plate|
|Random orbital sanding plate|
|Delta sanding plate|
|Sanding sheet for wood||2 x round sanding paper grain size 80 / 240, 2 x rectangular sanding sheet grain size 80/240, 2 x triangular sanding sheet grain size 80/240|
