BD11 distance meter
Small in size, but big on performance
Everything you need, always at the ready

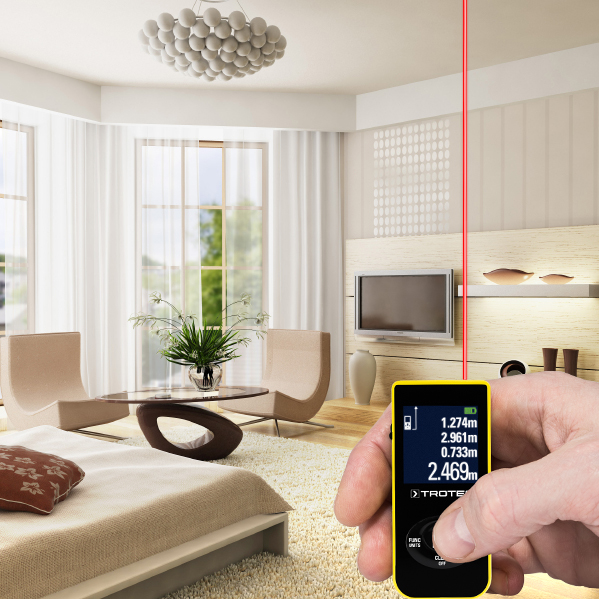

Despite its small size, the convenient mini laser measuring device BD11 comes equipped with everything a distance meter might need.
These features includes the precise laser measurement of distances, areas and volumes, the surprisingly varied equipment with helpful functions as well as the simple, intuitive operation. At the same time the measuring device is compact enough to fit into a trouser or shirt pocket.
The simple operator guidance and practice-optimized equipment of the hand-held laser meter have their share in how great the small measuring device actually is. What is more, there is an automatic switch-off function after 30 seconds for the laser and after 3 minutes with regard to the entire measuring instrument which is encased by a robust, dust- and splash-proof housing according to the IP54 type of protection.
The integrated lithium-ion battery can be recharged quickly and easily using the micro USB cable included in the scope of delivery.
In short, the BD11 certainly is a practical and compact aid for distance, area and volume measurement operations.
Unbeatable value-for-money ratio
Finally, a distance meter saving the avid do-it-yourselfer or craftsman both effort and money.
The laser measuring device with its unbeatable value-for-money ratio determines distances of up to 30 metres, areas and volumes precisely and with lightning speed. And that with a maximum discrepancy of no more than 3 millimetres!
Moreover, the BD11 can score with the functions ‘Pythagoras’ and ‘Pythagoras times two’: Both are indispensable functions enabling the indirect calculation of distances or heights in addition to checking the right angle.
The hand-held laser meter further comes with handy features such as a non-stop measuring mode, the addition and subtraction of the measurement results as well as the automatic saving of the 10 most recent measurements.
Special equipment features
High performance maintaining a low profile:
All distance measuring devices in direct comparison:
So that you can find exactly the right measuring device for you, you have the opportunity to clearly compare all distance measuring devices from Trotec with one another.
Models which you do not wish to include in your comparison can be easily dismissed with only one click.
A few practical benefits:
- Range of 0.05 m to 30 m
- Indirect distance and height or partial height calculation (3-point Pythagoras functions)
- Precise measurement of distances, areas and volumes within seconds
- Illuminated multi-line display
- Non-stop measuring mode with Min/Max function
- Addition and subtraction of measuring results
- Automatic saving of the 10 most recent measured values
- Robust workmanship – dust- and splash-proof (IP54)
- Measurement to be made from the front and rear edge
- Battery status indicator
- Automatic switch-off
- Wrist strap
- 3.7 V (200 mAh) lithium-ion battery, rechargeable via micro USB cable
standard equipment
optionally available
not available
Buy
/de_DE/3510205153/Entfernungsmesser-BD11-87956-1520857212.jpg)
Entfernungsmesser BD11
You save: 32 %
39.99 €
26.99 €
incl. VAT
Show net price (VAT not included)
Technical data
| Stammdaten | |
|---|---|
| Artikelnummer | 3510205153 |
| Länge ohne Verpackung [mm] | 34 mm |
| Länge mit Verpackung [mm] | 72 mm |
| Breite ohne Verpackung [mm] | 75 mm |
| Breite mit Verpackung [mm] | 110 mm |
| Höhe ohne Verpackung [mm] | 15 mm |
| Höhe mit Verpackung [mm] | 20 mm |
| Gewicht ohne Verpackung [kg] | 0.02 kg |
| Gewicht inklusive Verpackung [kg] | 1 kg |
| Technische Daten | |
| Bereich Auto-Leveling | - |
| Laserklasse | 2 |
| Laserleistung < [mW] | 1 |
| Messungen pro Batteriesatz | 2000 |
| Energie | |
| Anzahl Batterien pro Gerät | 1 |
| Bedingungen bei Betrieb, Lagerung und im Arbeitsumfeld | |
| Betrieb - max. Temperatur [°C] | 40 |
| Betrieb - min. Temperatur [°C] | 0 |
| Lagerung - max. Temperatur [°C] | 70 |
| Lagerung - min. Temperatur [°C] | -20 |
| Entfernungsmessung | |
| Typische Messtoleranz | ±3mm |
| Lieferumfang |
|---|
| Li-Ion-Akku (integriert) |
| Messgerät |
| Micro-USB-Kabel |
| Bedienungsanleitung |
| Handschlaufe |
| Funktionen und Ausstattung |
|---|
| Addition |
| Flächenmessung |
| Abschaltautomatik |
| hintergrundbeleuchtbares Display |
| Akkustatusanzeige |
| Maximalwert-Anzeige |
| Minimalwert-Anzeige |
| Dauermessfunktion |
| Pythagoras-Funktion |
| Aufruf letzter Messungen |
| Subtraktion |
| Volumenmessung |
| Gerätesteuerung |
|---|
| Drucktasten |
| Energieversorgung |
|---|
| Li-Ion-Akku (integriert) 200mAh |
| Gehäuseausführung |
|---|
| Kunststoff |
| IP-Schutzart | |
|---|---|
| IP Schutzart | IP54 |
| Schutz gegen Berührung | vollständiger Schutz gegen Berührung |
| Schutz gegen Wasser | Schutz gegen allseitiges Spritzwasser |
| Schutz gegen Fremdkörper | Geschützt gegen Staub in schädigender Menge |
| Laserpunkt | |
|---|---|
| Entfernung [m] | Durchmesser Laserpunkt [mm] |
| 10 | 10 |
| 20 | 12 |
| 30 | 20 |
