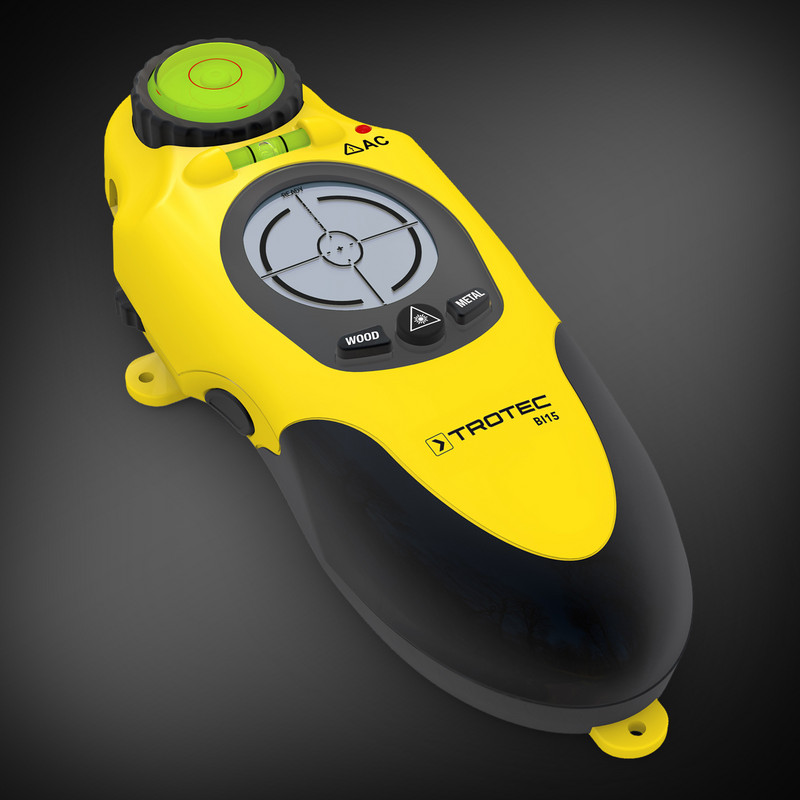

BI15 Wall Scanner
Practical universal locating device for drilling and levelling assistance
Goodbye drilling damage – The BI15 wall scanner protects drills and saves nerves at the same time, as this multifunctional measuring device doesn't only locate ferrous and non-ferrous metals or live cables, but also reliably finds wooden substructures located below plasters or concrete.

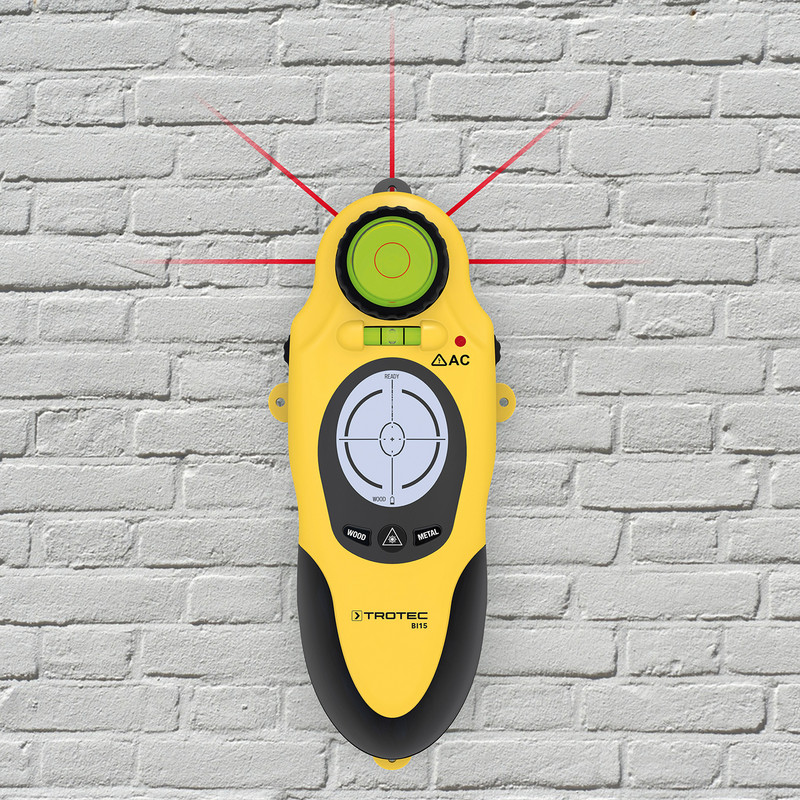

The measuring device is fitted with an adjustable laser levelling assistance to show the further course for construction or piping. This laser levelling assistance, combined with the two built-in spirit levels can be used as installation tools for correct angular alignment.

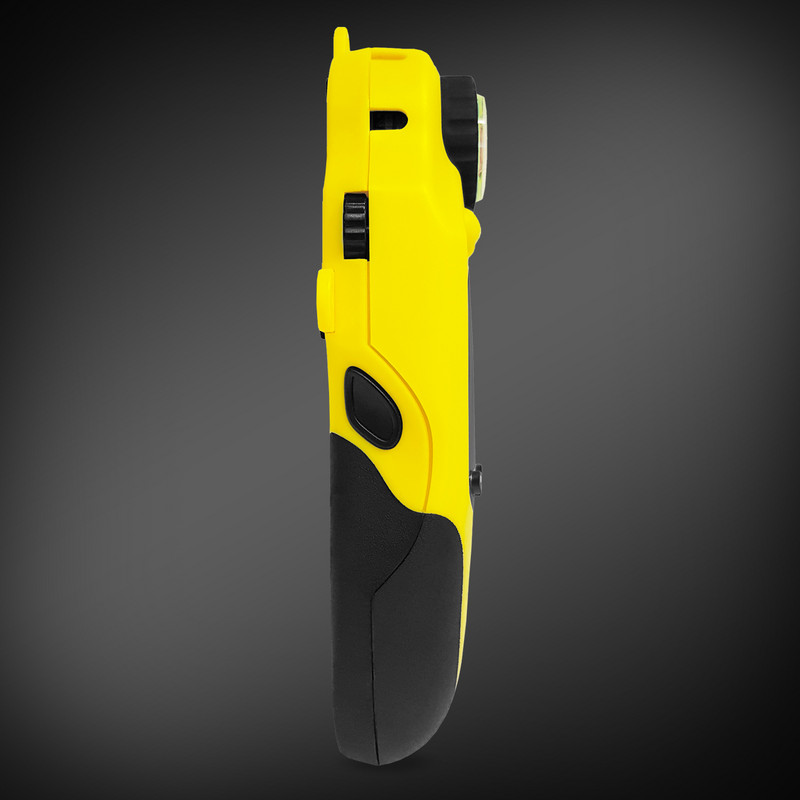

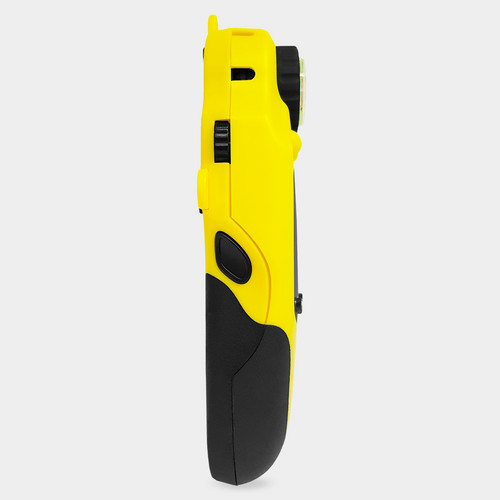

So that the BI15 Wall Scanner can also be aligned for measuring on uneven surfaces, there are two independent adjustment wheels fitted to the back which can compensate for unevenness at the position of measuring.
A few practical benefits:
- Simple detection of live cables, wood or metal in walls and floors
- Adjustable laser levelling aid
- With integrated bulls eye level and spirit level for exact alignment
- Adjusting wheels for evening out surfaces
- Detection to a depth of 38 mm
- Audiovisual alarm upon detection of alternating current
- Laser installation assistance up to 6 metres reach
- Material calibration when switching on
- Simple operation
- Optimum price-performance-ratio
Shop
Wallscanner BI15
Thanks to the Wallscanner BP15 from the MultiMeasure Basic-Series you can locate ferrous and non-ferrous metals, wooden substructures and live cables, which are under plaster, cement and concrete.
Sie sparen: 44 %
54.76 €
30.40 €
inkl. MwSt.
Nettopreis exkl. MwSt. anzeigen
Technical data
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | 3.510.205.140 | |
| Material detection | ||
| Maximum detection depth | max. 38 mm | |
| Measurement accuracy to the object's middle | ||
| Accuracy of the displayed object depth | ||
| Minimum distance between two neighbouring objects | ||
| Max. detection depth for metal and live cables | max. 38 mm | |
| Max. detection depth for wood | max. 19 mm | |
| Laser - levelling aid | ||
| Accuracy | 12.7 mm at 6.1 m | |
| Max. range [m] | 6.1 | |
| Laser class | 2 | |
| Laser output < [mW] | 1 | |
| Laser rotation | 180 °C in steps of 45°, laser wavelength: 630- 670 | |
| Display | ||
| LCD | ||
| Monochrome | ||
| Device control | ||
| Push buttons | ||
| Housing design | ||
| Plastics | ||
| Type of protection | ||
| IP54 | ||
| Power supply | ||
| Internal (battery) | 1 x 9 V battery | |
| Ambient conditions | ||
| Operation - min. temperature [°C] | -7 | |
| Operation - max. temperature [°C] | 49 | |
| Storage - min. temperature [°C] | -29 | |
| Storage - max. temperature [°C] | 66 | |
| Dimensions | ||
| Length (packaging excluded) [mm] | 180 | |
| Width (packaging excluded) [mm] | 38 | |
| Height (packaging excluded) [mm] | 67 | |
| Weight | ||
| (packaging excluded) [kg] | 0.18 | |
| Standard scope of delivery | ||
|---|---|---|
| Standard scope of delivery | ||
| Measuring device | ||
| Battery(-ies) | ||
| Operating manual | ||
| Transport bag | ||
| Ascertainable measured values and functions | ||
|---|---|---|
| Internal sensors | ||
| Detection of ferrous metals | ||
| Detection of non-ferrous metals | ||
| Detection of wooden substructures | ||
| Detection of live cables | ||
| Functions and features | ||
| Metal and wood measuring modes | ||
| Selectable levelling laser | ||
| Audiovisual alarm upon detection of alternating current | ||
| Signal tone for detection of edges | ||
| Calibration function | ||
| Battery status indication | ||
| Automatic switch-off | ||
standard equipment
optionally available
not available
