Electric planer PPLS 10‑800

High-speed electric planer with chip extraction, dust bag, rip fence and rebating depth stop

For even material removal up to a cutting depth of 2.5 mm

In times of continuously increasing costs, the practical electric planer PPLS 10-800 helps you save on your household budget. Whether you cut a wooden door without tears, refurbish a solid wood board or generate clean rebates – all this and lots more is possible with the planer that offers professional equipment at an attractive DIY price. Spare yourselves handyman invoices and expensive machinery – with the wood planer PPLS 10-800, you can achieve perfect work results for a large variety of tasks. With its equally light and robust design, the electric tool combines everything you can expect from a reliable and versatile electric planer: a powerful 800 watt motor with 17,000rpm to ensure extensive material removal within the shortest time possible with its top-quality carbide knives. The lightweight device can be guided easily – even with one hand. An integrated chip suction function always keeps your workplace tidy and provides a clear view of the workpiece, preventing wood chips from flying by safely storing them in the practical dust bag.

Increased safety and enhanced comfort for your woodworking tasks

The electric planer PPLS 10‑800 is equipped with a safety switch preventing unintentional switch-on. During work breaks, an automatic lift-off device provides reliable protection for the planer knife, the workpiece and the user. Whatever you have to buy in addition for products of other manufacturers is part and parcel of the PPLS 10-800. A rebating depth stop and a rip fence are already included in the standard scope of delivery of the electric tool, allowing you to carry out even demanding planing tasks with great accuracy. With the PPLS 10‑800, you can preselect a rebating depth of up to 11 mm and reduce the width of the planing track to the desired level using the rip fence. Additionally, the rip fence helps you to guide the planer accurately along the workpiece with a high work progress and a maximum planing width of 82 mm.

A neat piece of work in every working environment

From chipping come chips – which the PPLS 10-800 sucks into its closed dust bag in next to no time thanks to its integrated chip suction mechanism., keeping your workplace and workpiece clean and free from annoying wood chips even during longer working periods. This improves your view to the work result and minimises your cleaning effort after you’ve finished working.

Ergonomic design ensures fatigue-free working

Its symmetrical design makes the electric planer PPLS 10‑800 equally easy to use for right- and left-handers. The knob at the front serves as a handle for bimanual guiding and doubles as a cutting depth adjuster to provide a practice-optimised solution with an incremental cutting depth adjustment and easily readable depth scale. In fine increments of 0.1 mm, the cutting depth can be variably adjusted from 0 to 2.5 mm.

With an ideally positioned centre of gravity and integrated soft grip inlays in the guide handle, the pleasantly compact PPLS 10‑800 is suitable for professional continuous operation with maximum working ergonomics. A firm and secure grip of the tool is ensured even during longer operation for vibration-damped planing at all times. With its solid aluminium base plates, the planer can be directed very precisely. The front base plate is provided with three differently sized V-grooves so that accurate chamfering becomes mere child's play.

To guarantee even, plane work results, the large cutting head of the PPLS 10‑800 is equipped with two reversible high-quality carbide blades offering double durability. If worn, the blades can simply be turned over and continued to be used with the rear edge before they have to be replaced.

The key equipment features of the PPLS 10‑800 at a glance

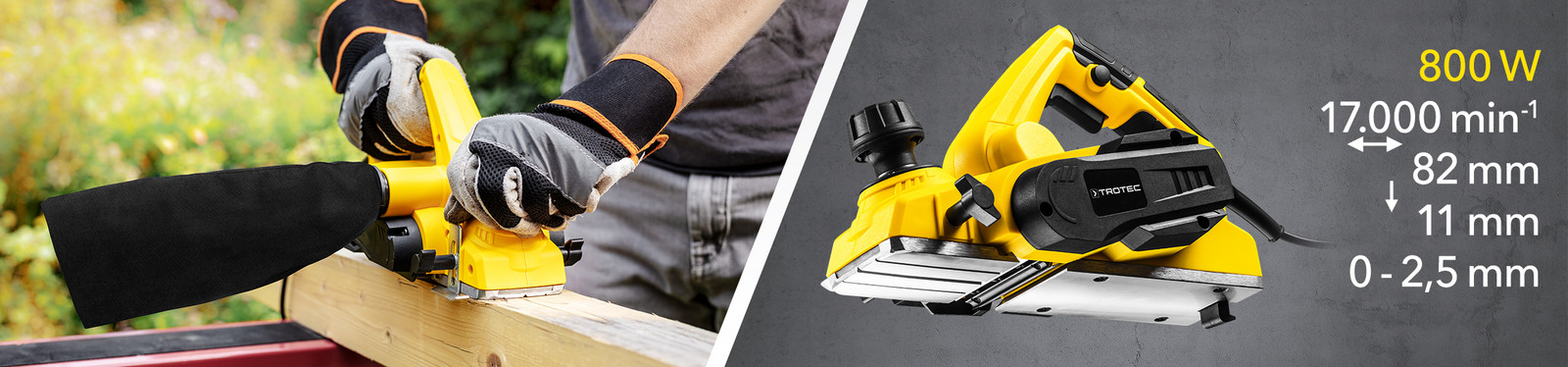

PPLS 10-800 – powerful 800 W planer
Powerful 800 watt planer in compact design with soft-grip rubber inlays at the handle allowing you to always guide the tool with a secure grip for precise planing and milling results.

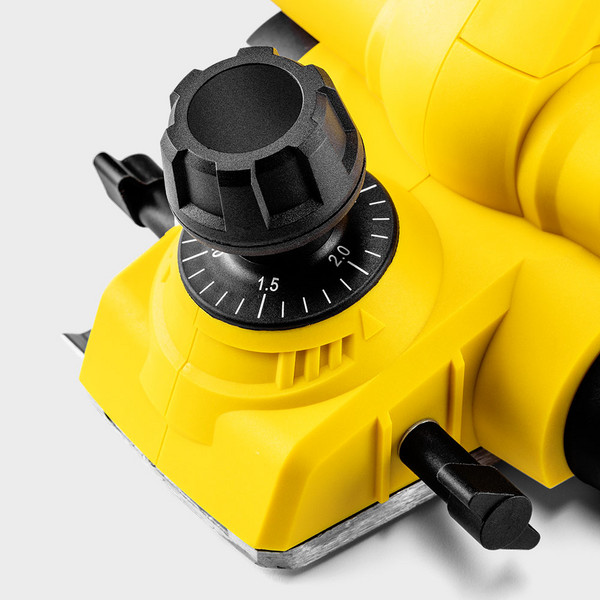

Guide knob with cutting depth adjustment
At the guide knob, you can adjust the cutting depth from 0 to 2.5 mm in fine increments of 0.1 mm.

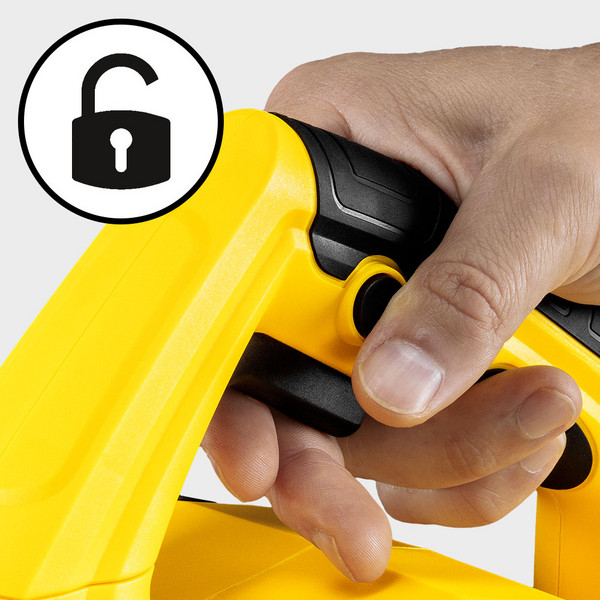

Safety switch
A safety switch prevents unintentional switch-on of the electric planer.

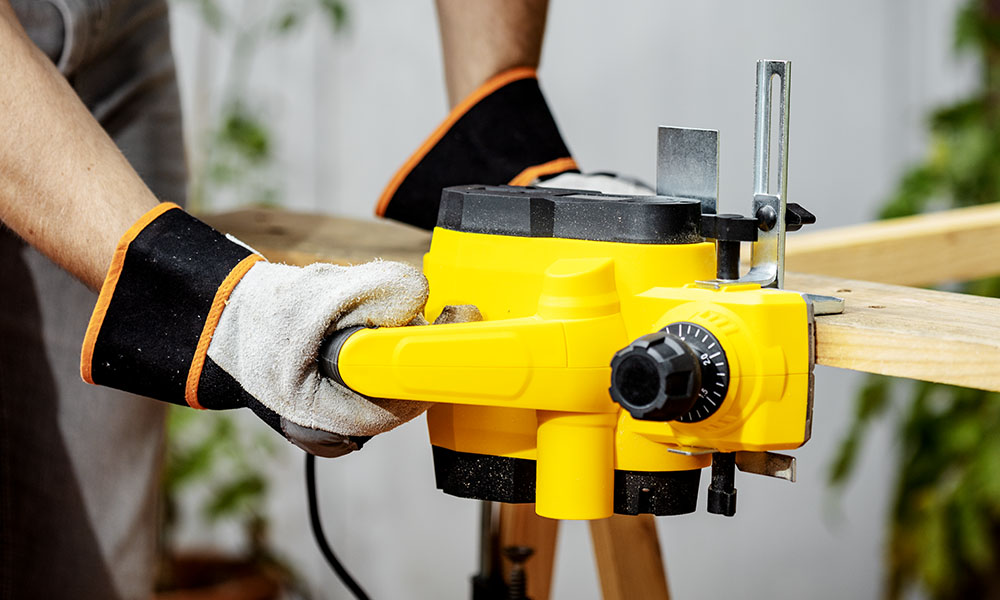

Rip fence
The supplied rip fence can be mounted to the tool edge of the device as a guide for precise working.
Robust, attachable dust bag
A robust, attachable dust bag for clean and chip-free working is already supplied with the delivery.

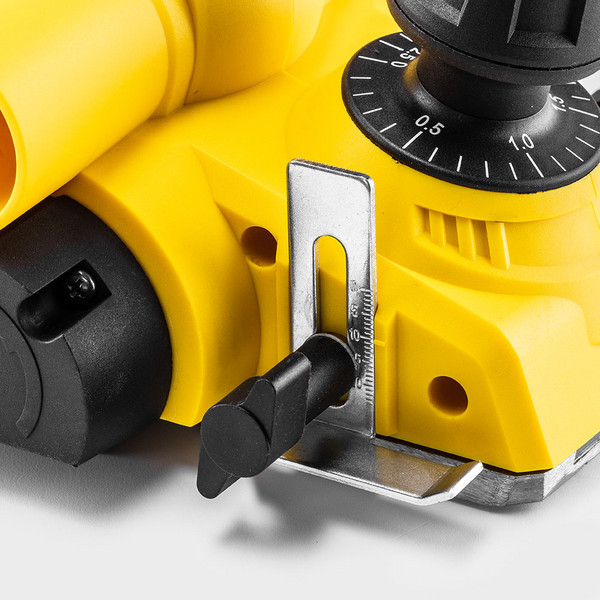

Integrated rebating depth stop
The integrated rebating depth stop can be used to adjust the rebating depth of the planing track.
Integrated rebating depth stop
The integrated rebating depth stop can be used to adjust the rebating depth of the planing track.
Three V-grooves in the base plate
The base plate has three differently sized V-grooves for need-based chamfering of edges.
Large cutting head
High-quality carbide blades and a large cutting head guarantee optimum planing results.
Solid aluminium base plate
A solid aluminium base plate ensures plane work results.
Automatic lift-off device
The integrated lift-off device automatically lifts the base plate when the device is put down and thus protects both the blades and the workpiece.
Automatic lift-off device
The integrated lift-off device automatically lifts the base plate when the device is put down and thus protects both the blades and the workpiece.

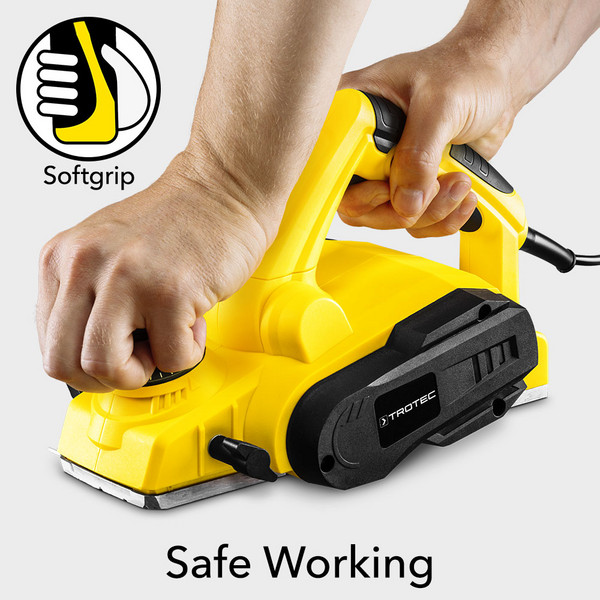

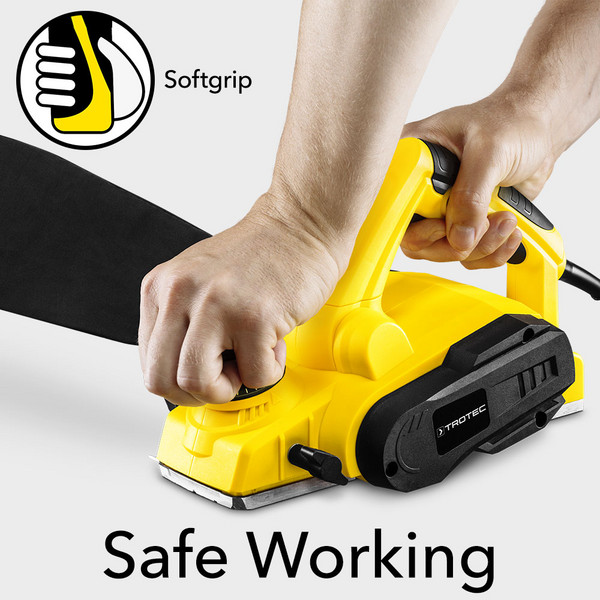

Soft grip inlays
To make sure that the compact and comparatively light electric planer always glides over the workpiece with a secure grip, the device, which is suitable for both left- and right-handed users, is equipped with non-slip soft-grip inlays.

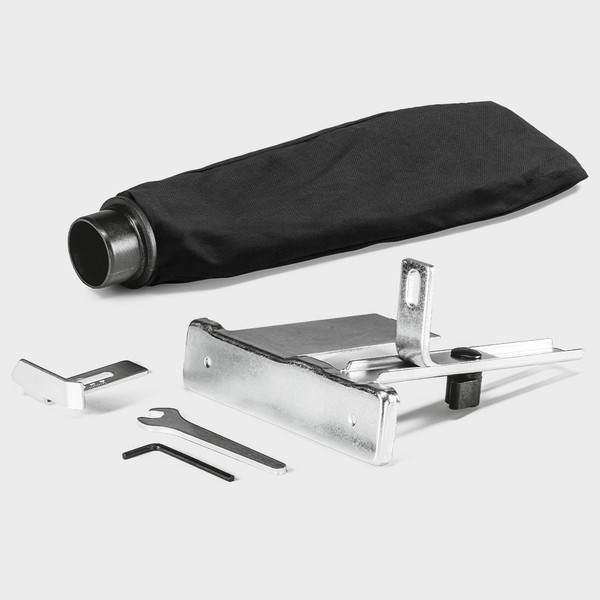

PPLS 10-800 – scope of delivery
Included in the complete package: a rip fence, a rebating depth stop, a dust collection bag, an Allen wrench and an open-end wrench.

PPLS 10‑800 – high-performance electric planer for demanding woodwork

Dust collecting bag supplied
For clean working without chip residues, the PPLS 10-800 is offers the option of connecting the dust bag included in the scope of delivery.
Detachable rip fence
The rip fence included in the scope of delivery facilitates accurate planing of edges at a right angle and provides additional support during angled planing work.

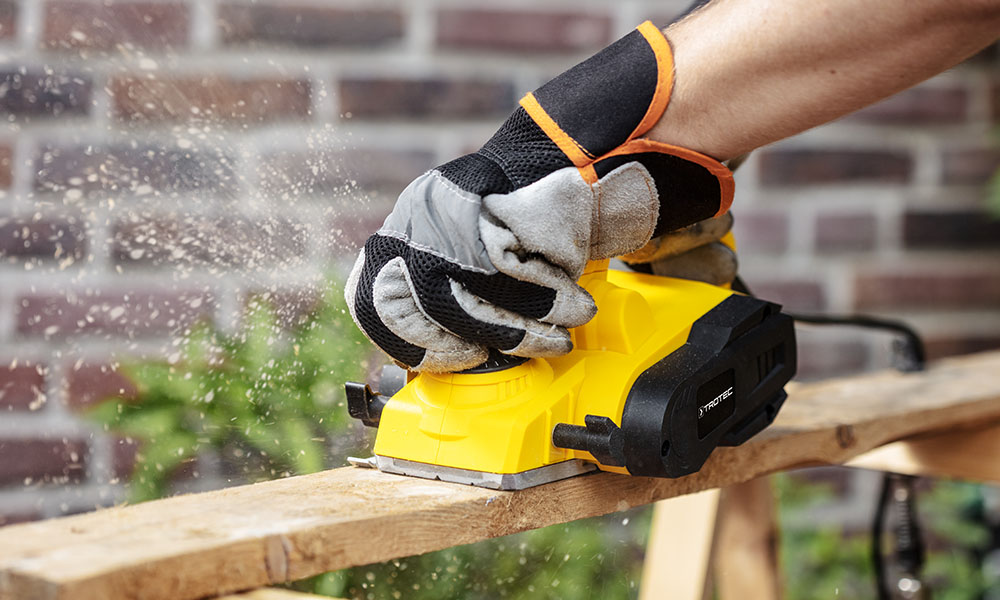

Chip ejector
For a fast working progress, the PPLS 10‑800 can be securely guided, and its chip ejector can be optionally collected or blown out, just as required by the respective working situation.
Technical data in comparison

All Electric planers in direct comparison:

To find the Electric planer which exactly meets your requirements, please consult the concise overview of all Electric planers from Trotec, which we're providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • Compact and powerful 800 W planer for demanding applications up to a cutting depth of 2.5 mm
  • Combined guide and cutting depth handle allows for working with a secure grip and fine adjustment of the cutting depth
  • Three V-grooves in different sizes for easy chamfering of edges
  • Automatic lift-off device protecting the planer knife and workpiece
  • Thanks to the rebating depth stop and rip fence, even demanding applications can be carried out with maximum accuracy
  • High-quality reversible carbide blades achieve excellent surface quality
  • Large cutting head for optimal planing results
  • Safety switch preventing unintentional switch-on
  • Solid aluminium base for level work results
  • A robust, attachable dust collection bag is part of the scope of delivery
  • Rubberised softgrip inlays in the housing provide for an extra firm hold

All important features at a glance

Scope of delivery for the electric planer PPLS 10-800

The electric planer PPLS 10‑800 is supplied with a rip fence, rebating depth stop, open-end wrench, Allen wrench and dust collection bag.


Buy

Technical data

Stammdaten
Artikelnummer4450000102
Länge ohne Verpackung [mm]275 mm
Länge mit Verpackung [mm]318 mm
Breite ohne Verpackung [mm]163 mm
Breite mit Verpackung [mm]170 mm
Höhe ohne Verpackung [mm]190 mm
Höhe mit Verpackung [mm]190 mm
Gewicht ohne Verpackung [kg]3.5 kg
Gewicht inklusive Verpackung [kg]4 kg
Technische Daten
Falztiefemax. 11 mm
Hand- / Armvibration [ah]6.47
Hobelbreite [mm]82
V-Nuten3
Energie
Kabellänge [m]2
Nennstromaufnahme A3.26
Netzanschluss und -frequenz220 - 240 V, 50 Hz
Leistungsaufnahme800 W
empfohlene Absicherung [A]10 A
Schall Eigenschaften (-emission, -leistung, -druck)
Schalldruckpegel [dB(A)]85
Schallleistungspegel [dB(A)]96
Lieferumfang
Innensechskantschlüssel
Staubbeutel
Maulschlüssel
Falztiefenanschlag
Parallelanschlag
Funktionen und Ausstattung
Staubbeutel
Parkschuh
Einseitiger Spanauswurf
Maulschlüssel
Falztiefenanschlag
Parallelanschlag
Sicherheitsschalter
Anschlussstecker
BezeichnungCEE 7/17
