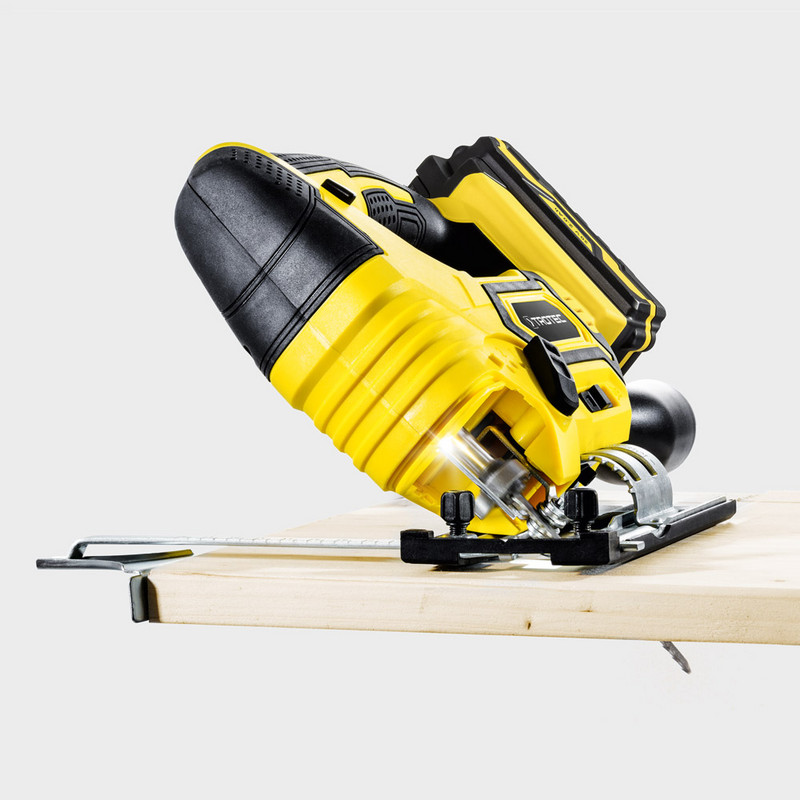

Cordless jigsaw PJSS 11-20V
  1. Products & Services
  2. Powertools
  3. Jigsaws
  4. PJSS 11-20V

Cordless jigsaw PJSS 11-20V

Compact and cordless contraption guaranteeing a clean cut – also with regard to costs

Cordless jigsaw PJSS 11-20V- Application of laminate
Cordless jigsaw PJSS 11-20V- Metal Application
Cordless jigsaw PJSS 11-20V- Furnishing

Jigsaws with battery, cord or barrel grip

With this cordless pendulum action jigsaw everything will come off well – even without a nearby socket. For maximum performance the powerful motor of the PJSS 11-20V is supplied by an exchangeable high-energy 20 V battery. Owing to lithium-ion technology, this battery shows no memory effect or any sign of self-discharge. Thus, the jigsaw is ready for operation at all times even after longer periods of non-use. A three-stage illuminated indicator on the device informs you of the current battery status. Using the supplied quick charger an empty battery can be fully charged in about an hour.

In terms of functionality and equipment the PJSS 11-20V is in no way inferior to the cable-connected jigsaws:

The combination of infinitely variable stroke rate control with safety switch and adjustable 4-step pendulum action incl. fine-cut setting permits easier notching and material-compatible working whilst ensuring a quick sawing progress and an improved manoeuvrability in curves. In wood the jigsaw PJSS 11-20V achieves cutting depths of up to 80 mm, up to 12 mm in aluminium and 5 in metal.

The quick-release chuck of the PJSS 11-20V permits a tool-free saw blade exchange in a matter of seconds. In order for you to get started right away, a number of high-quality saw blades for all application areas are already included in the scope of delivery.

You will be presented with even more application possibilities when using the PJSS 11-20V in combination with our multi-part set of saw blades for wood or metal – needless to say, both will be supplied in prime Trotec quality as well.

Cordless jigsaw PJSS 11-20V- Application of curve section
Cordless jigsaw PJSS 11-20V
Cordless jigsaw PJSS 11-20V

Ergonomic design for wireless precision

The ergonomics of the light and compact PJSS 11-20V were optimized for extensive applications, additionally it was provided with soft grip inlays. Consequently, a firm and secure grip is ensured even during longer operation for low-vibration sawing at all times. With the robust steel base plate it can be directed very precisely. For mitre cuts the plate can be swivelled to both sides in increments of 15°. The maximum is 45°. This adjustment does not require tools. A plastic sliding plate for the protection of sensitive workpieces is also supplied.

Whilst the transparent anti-splinter guard with marker point ensures precise tear-free cuts for your sawing work, there will be no sawdust obstructing your view of the well illuminated cutting area of the workpiece thanks to the integrated LED lamp and the practical blow-out function. For dust-free indoor operation the blower function can also be set to suction mode. By means of the adapter you can attach a vacuum cleaner to the dust extraction connection of this versatile jigsaw.

Furthermore, after use you can store the PJSS 11-20V in a neat and tidy manner, for a suitable transport case is already included in the standard scope of delivery. In the robust case with integrated storage compartment jigsaw and accessories are kept in an orderly manner and protected from dust and damage during transport.

The PJSS 11-20V is a neat and tidy solution for various jigsaw applications – not restricted to the workshop, garage or outdoors. Thanks to the integrated dust extraction system you can also use this pendulum action jigsaw in your living areas without wreaking havoc or being smothered in sawdust.

You want to saw your kitchen worktop or the shelf in the living room to length directly on site? Simply set the blower function of the PJSS 11-20V to suction mode and connect an external vacuum cleaner to the device. Using the suction function you can keep both the room and the ambient air free from wood chippings, plastic shavings, metal swarf and sawdust – for convenient sawing even in the living area!

Special features of the PJSS 11‑20V

4-stage oscillation
4-stage operation: three pendulum lift stages plus fine cut stage.
Miter cuts up to 45 °
The base plate can be swiveled in 15 ° steps for miter cuts up to 45 °.
Splinter protection
Transparent splinter protection for tear-free cuts in wood.
Toolless saw blade changes
Quick-release chuck for tool-free saw blade changes in seconds.
Rip fence
Rip fence for accurate cuts parallel to the workpiece edge.
2 fan functions
2 blower functions: blowing out for chip-free cutting line and suction for dust-free work.
Dust extraction connection
Integrated connection for dust extraction - a vacuum cleaner adapter is included in the scope of delivery.
Three-stage battery capacity display
Three-stage illuminated battery charge status indicator.
Built-in LED work light.
Built-in LED work light.
Operating button for continuously variable stroke rate control and safety switch to prevent unintentional switching on.
Operating button for infinitely variable stroke rate control and safety switch to prevent unintentional switching on.
Chip protection
Removable cover to protect against flying chips when using dust extraction.
Rapid battery charger
Quick charger for the 20 V lithium-ion battery - only 1 hour charging time.

Straight or curved - with the PJSS 11‑20V cordless jigsaw you are always on a precision course

Also masters deep cuts with ease
The PJSS 11‑20V's 20 V battery power, the powerful motor and the stroke rate control electronics with stepless adjustment are perfectly synchronized, which is why you can effortlessly achieve cutting depths up to 80 mm in wood with this jigsaw.
4-stage pendulum oscillation for hard materials
Universally applicable for all projects: With the PJSS 11‑20V you can not only saw in wood, but also process plastic, sheet metal, pipes or profiles without any problems, with cutting depths in aluminum up to 12 mm and in metal up to 5 mm.
Ideal for tight shapes and curves
With this pendulum jigsaw you can confidently master even the tightest shape and curve cuts, because the PJSS 11‑20V is almost as manoeuvrable as a fretsaw and impresses with its precise, tear-free cut.
Rip fence for uniform cutting distances
The supplied rip fence can be set variably to widths of up to 15 cm and is an indispensable aid for making accurate cuts parallel to the workpiece edge or for sawing several boards of the same width.

All Jigsaws in direct comparison:

To find the Jigsaw which exactly meets your requirements, please consult the concise overview of all Jigsaws from Trotec, which we're providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • Powerful 20 V lithium-ion battery without memory effect and without self-discharge
  • Flexpower multi-device battery – can be flexibly combined also with other cordless tools
  • 4-step switch for optimum sawing progress: three stages for pendulum action plus a fine-cut setting
  • Infinitely variable stroke rate control with restart lock for safe working
  • Base plate made of steel with detachable sliding block – can be swivelled to both sides in increments of 15° (max. 45°) for mitre cutting
  • 2 blower functions: blowing out and vacuuming for a cutting line and working environment without sawdust
  • Quick-release chuck for a tool-free saw blade exchange in a matter of seconds
  • Anti-splinter guard for tear-free cuts
  • Integrated LED work lamp
  • Soft grip rubber inlays in the housing for extra firm hold
  • 3-stage battery level indication

Allowing flexible combinations – one battery suitable for many devices
Lithium-ion battery with 2 Ah capacity
Quick charger – only 1 hour of charging required
Idle speed 0 to 2,700 rpm
3 steps for pendulum action plus a fine-cut setting
Infinitely variable speed control
Mitre cuts up to an angle of 45°
Saw blade exchange without the need for tools
Three-stage battery status indicator
Integrated work lamp
Restart lock for working safely
Blow-out function
Vacuum-off function
Wireless operation
Soft grip for improved hold
Delivered in a carry case

The cordless jigsaw PJSS 11‑20V is supplied with rip fence, adapter for external dust extraction, anti-splinter guard, sliding block, Allen wrench, transport case, two saw blades for wood and one for metal.

Flexpower – the innovative multi-device battery system from Trotec

Even the standard scope of delivery of this power tool from Trotec already includes a powerful 20 V multi-device battery from the Trotec Flexpower portfolio with a high charging capacity of 2 Ah. You can check the current charging status via the three-stage battery level indication that is integrated in the battery housing and clearly visible at one glance.

This power pack that can be fully charged in about an hour not only enables device runtimes extended by up to 33 % – as compared to standard batteries with only 1.5 Ah – moreover, this Flexpower multi-device battery can also be flexibly combined with different Trotec tools, including i.a. the cordless rotary hammer PRDS 10‑20V, the cordless multi-function tool PMTS 10‑20V, the cordless portable circular saw PCSS 10‑20V, the cordless random orbital sander PESS 10-20V, the cordless work light PWLS 10‑20V, the cordless work LED light PWLS 15‑20V, the cordless drill driver PSCS 11‑20V, the cordless hammer drill PHDS 11‑20V, the cordless grass and shrub shears PGSS 10-20V, the Cordless compressor PCPS 11‑20V and air pump PCPS 12‑20V, the cordless pendulum action jigsaw PJSS 11‑20V, the cordless hand-held vacuum cleaner VC 10‑20V or the Cordless vacuum cleaner VC 15‑20V.

Thanks to Flexpower you can do without unnecessary batteries and chargers – and the search for a suitable battery has also come to an end. Simply change the device, not the battery. Flexpower puts a stop to the unnecessary amount of various exchangeable batteries; the combination option with an ever increasing number of tools allows you flexibility at all times so you can carry on your projects energetically!

Premium branded battery for constantly full power

Premium branded battery

By now, lithium-ion batteries are widely distributed, after all they come without memory effect and self-discharge. Plus these batteries can be disconnected from the charger and used right away without it affecting the battery’s lifetime. But “lithium ions” is a generic term used for batteries of various qualities and made of diverse electrode materials; including those with a perceptibly weakening performance once the battery charge decreases.

Lithium-ion batteries supplied by Trotec are high-quality premium branded NMC batteries with a high energy density and charging voltage lasting until the end without exceptions – guaranteed! Compared to conventional lithium-ion batteries the performance of our premium branded batteries does not decrease even as the discharge increases.

Consequently, you benefit from lasting maximum power even with an almost empty battery. During longer operation only the battery charge decreases, never their performance – that is the added value of Trotec’s premium branded batteries!

Brand quality plus cost-efficiency

So far, you basically only had two options when choosing a cordless screwdriver: either good but expensive, or mainly cheap.

Trotec's PowerTools now offer a smart choice: good and cheap at the same time. For we do not only stand for measuring devices and air conditioners, but also for power tools of brand quality: professional Trotec solutions with an excellent value-for-money ratio!

VC 15‑20V – perfect working without raising any dust

VC 15‑20V – perfect working without raising any dust

With the cordless vacuum cleaner VC 15‑20V you spare yourself the trouble of emptying the dust bag. As an extraction system for electric tools, the VC 15‑20V keeps the air and working environment clean – making you independent of free sockets and annoying extension cables. Just as many Trotec power tools, the vacuum cleaner draws its power from a lithium-ion battery (20V/2Ah) from the Flexpower multi-device battery series.

Fine dust particles that are ejected in the sanding or sawing process are sucked into the 10-litre dust collection container without any effort by the extremely manoeuvrable cordless vacuum cleaner with its practical castors. Furthermore, an integrated HEPA filter (> 89 % filter efficiency) prevents dust particles that have been sucked in from getting back into the room air and being inhaled.


Akku-Stichsäge PJSS 11-20V show in Trotec online shop

Akku-Stichsäge PJSS 11‑20V

You save: 40 %

99.95 € 59.95 € incl. VAT Show net price (VAT not included)


Technical data

Technical data
General information
  Article number 4.425.000.006
Technical data
  Stroke rate at no load (combined) 0 - 2.700 min-1
  Pendulum cutting stages 0 – 3
  Stroke [mm] 20
  Max. cutting depth (wood) [mm] 80
  Max. cutting depth (aluminium) [mm] 12
  Max. cutting depth (metal) [mm] 5
  Cutting angle: left/right 0°/15°/30°/45°
Sound values according to EN 62841
  Sound pressure level [dB(A)] 85
  Sound power level [dB(A)] 96
  Uncertainty K [dB] 5
Vibration information according to EN 62841
  Vibration emission value jigsaw blade wood (ah) [m/s²] 5.86
  Uncertainty jigsaw blade wood (K) [m/s²] 1.5
  Vibration emission value jigsaw blade metal (ah) [m/s²] 6.15
  Uncertainty jigsaw blade metal (K) [m/s²] 1.5
Electrical values battery
  Battery nominal voltage [V] 20
  Battery capacity [Ah] 2
  Capacity indication 3-stage
  Battery type Li-ion
  Battery charging time [h] 1
  Mains connection 230 - 240 V, 50 Hz
  Output voltage [V] 21.5
  Power input [W] 65
  Nominal current consumption [mA] 2,400
  Connection plug CEE 7/16
  Cable length [m] 1.5
  Protection class II
  Length (packaging excluded) [mm] 250
  Width (packaging excluded) [mm] 75
  Height (packaging excluded) [mm] 200
  (packaging excluded) [kg] 2
Equipment, features and functions
Functions and features
  Infinitely variable speed control
  Blower function
  LED light
  Safety switch
  Infinitely variable speed control (on/off switch)
  Saw blade cover
  Tool-free exchange of accessories
  Sliding block
  Rip fence
  Integrated dust extraction system
  Anti-splinter guard
  ON/OFF switch
Standard scope of delivery
Accessories scope of delivery
  T-shaft saw blades 3x (2x wood, 1x metal)
  Adapter for dust extraction
  Battery pack
  Hexagonal wrench 1x
  Quick charger
  Transport case

 standard equipment

 optionally available

 not available
